IH series Horizontal Single Suction Chemical Centrifugal Pump

Maximum drive rating: 90KW(120HP)
Maximum caliber: 200mm(8inch)
Maximum discharge-side pressure: 1.25MPa(12.5bar)
Maximum head: 125m(410ft)
Flow rate range: 6.3-400m3/h(27.7-1760US.GPM)

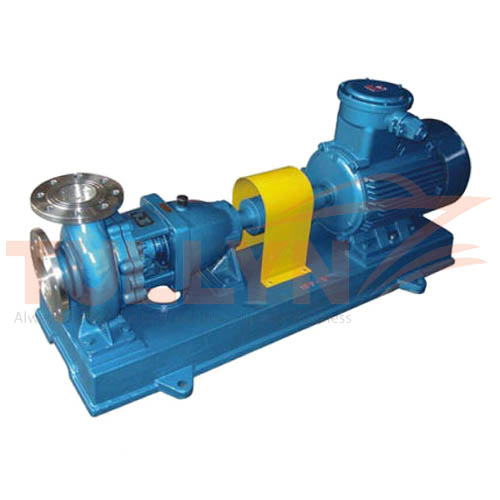

IH series Horizontal Single Suction Chemical Centrifugal Pump

IH series Horizontal Single Suction Chemical Centrifugal Pump Application

IH series Horizontal Single Suction Chemical Centrifugal Pump is newly designed single-stage, single suction centrifugal pumps. They are ideal energy-conservation pumps instead of F type pumps for anti-corrosion. The part made of different material for transferring the medium can be chosen by the medium corrosion.

IH series pump can be used as corrosive fluid pumps for conveying corrosive liquids at a temperature between -20°C to 105°C in various industrial fields such as chemical, petroleum-refining, metallurgical, food and brewery, pharmaceutical, synthetic fibers, and etc.

IH single stage end suction pump anti-corrosion stainless steel centrifugal chemical pump is specially designed for corrosive liquid, acid, and base. Pump applies to transfer corrosive liquid (chemical) without solid and viscosity similar to water. It’s excellent in performance, efficiency and easy in maintenance. The normal IH could pump medium which is -20°C~105°C(-4°F~ 221°F), while high-temperature reaches 300°C(572°F). It is widely used in chemistry, petroleum, metallurgy, electricity, papermaking, food, pharmacy, environmental protection, wastewater treatment, synthetic fiber or other industries.

IH series Horizontal Single Suction Chemical Centrifugal Pump Drawing

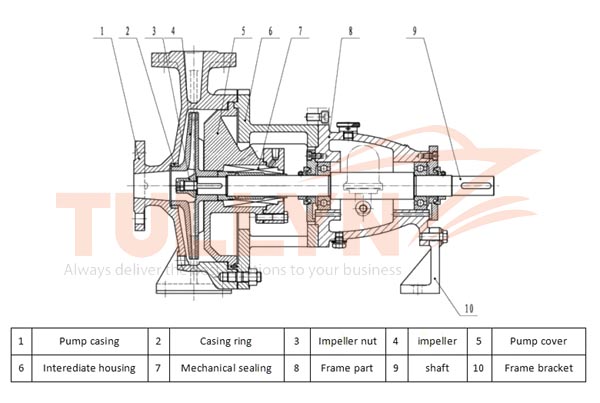

IH series Horizontal Single Suction Chemical Centrifugal Pump Construction

IH series Horizontal Single Suction Chemical Centrifugal Pump Construction

IH series Horizontal Single Suction Chemical Centrifugal Pump Specification

Type Inlet Outlet Capacity Head Motor Speed Motor Power Impeller
Diameter
mm mm (m³/h) (m)  r/min (KW) mm
IH25-25-125 25 25 4 20 2900 1.1 125
IH25-25-160 25 25 4 32 2900 1.5 160
IH32-25-125 32 25 5 20 2900 1.5 125
IH32-25-160 32 25 5 32 2900 2.2 160
IH32-25-200 32 25 5 50 2900 3 200
IH40-32-125 40 32 7 20 2900 1.5 125
IH40-32-160 40 32 7 32 2900 2.2 160
IH40-32-200 40 32 7 50 2900 4 200
IH50-32-125 50 32 12.5 20 2900 2.2 125
IH50-32-125 50 32 6.3 5 1450 0.55 125
IH50-32-160 50 32 12.5 32 2900 3 160
IH50-32-160 50 32 6.3 8 1450 0.55 160
IH50-32-200 50 32 12.5 50 2900 5.5 200
IH50-32-200 50 32 6.3 12.5 1450 0.75 200
IH50-32-250 50 32 12.5 80 2900 11 250
IH50-32-250 50 32 6.3 20 1450 1.5 250
IH65-50-125 65 50 25 20 2900 3 125
IH65-50-125 65 50 12.5 5 1450 0.55 125
IH65-50-160 65 50 25 32 2900 5.5 160
IH65-50-160 65 50 12.5 8 1450 0.75 160
IH65-40-200 65 40 25 50 2900 11 200
IH65-40-200 65 40 12.5 12.5 1450 1.1 200
IH65-40-250 65 40 25 80 2900 15 250
IH65-40-250 65 40 12.5 20 1450 2.2 250
IH65-40-315 65 40 25 125 2900 30 315
IH65-40-315 65 40 12.5 32 1450 4 315
IH80-65-125 80 65 50 20 2900 5.5 125
IH80-65-125 80 65 25 5 1450 0.75 125
IH80-65-160 80 65 50 32 2900 7.5 160
IH80-65-160 80 65 25 8 1450 1.1 160
IH80-50-200 80 50 50 50 2900 15 200

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
