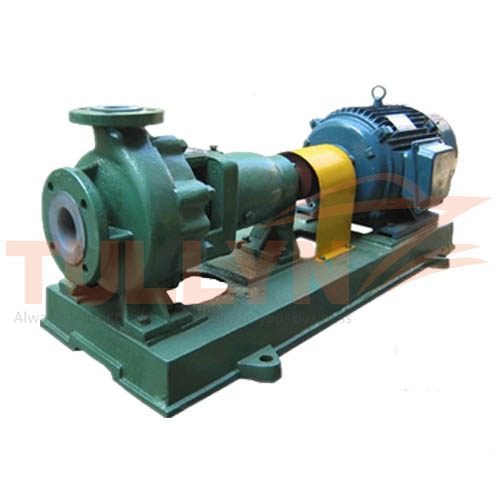

IHF series Fluoro Plastic Acid Resistant Chemical Pump
IHF series Fluoro Plastic Acid Resistant Chemical Pump Application
IHF series Fluoro Plastic Acid Resistant Chemical Pump is designed according to international standards. The pump has a corrosion-resistant, wear-resistant, high-temperature resistant, non-aging, high mechanical strength, non-toxic decomposition, the use of the advantages of wide temperature. The pump body is made by metal housing and FEP (F46) lining, pump cover, impeller and shaft sleeve are made by integrated sintering and pressure molding of metal insert and Fluor plastic housing, the shaft is sealed by external bellow mechanical seal.
IHF Fluoro Plastic Chemical Pump is widely used with the chemical, pharmaceutical, petroleum, metallurgy, electricity, electroplating, pickling, pesticide, paper and other industries in the liquid delivery, wastewater treatment, and processing acid, etc. process.
IHF Fluoro Plastic Chemical Pump can be used in transporting harsh and strong erosive medium of any density such as vitriol, hydrochloric, organic dissolvent, corrosion medium and reducing agent etc. It is one of the latest erosion proof equipment in the world.

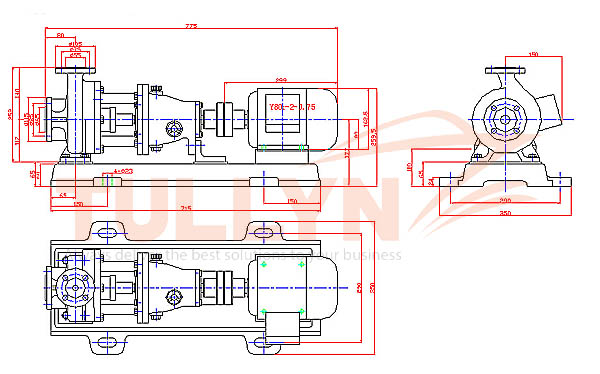

IHF series Fluoro Plastic Acid Resistant Chemical Pump Drawing
IHF series Fluoro Plastic Acid Resistant Chemical Pump Construction
IHF series Fluoro Plastic Acid Resistant Chemical Pump Specification
| Type | Capacity | Head | Motor power | NPSHr | Speed | Efficiency |
| ( m3/h) | m | Kw | (m) | r/min | (%) | |
| IHF50-32-125 | 12.5 | 20 | 2.2 | 3 | 2900 | 51 |
| IHF50-32-160 | 12.5 | 32 | 4 | 3 | 2900 | 46 |
| IHF50-32-200 | 12.5 | 50 | 7.5 | 3 | 2900 | 39 |
| IHF65-50-125 | 25 | 20 | 3 | 3.5 | 2900 | 62 |
| IHF65-50-160 | 25 | 32 | 5.5 | 3.5 | 2900 | 57 |
| IHF65-40-200 | 25 | 50 | 11 | 3.5 | 2900 | 52 |
| IHF65-40-250 | 25 | 80 | 18.5 | 3.5 | 2900 | 50 |
| IHF80-65-125 | 50 | 20 | 5.5 | 4 | 2900 | 69 |
| IHF80-65-160 | 50 | 32 | 11 | 4 | 2900 | 67 |
| IHF80-50-200 | 50 | 50 | 15 | 4 | 2900 | 63 |
| IHF80-50-250 | 50 | 80 | 30 | 4 | 2900 | 66 |
| IHF100-80-125 | 100 | 20 | 11 | 4.5 | 2900 | 77 |
| IHF100-80-160 | 100 | 32 | 15 | 4.5 | 2900 | 73 |
| IHF100-65-200 | 100 | 50 | 30 | 4.5 | 2900 | 73 |
| IHF125-80-160 | 160 | 32 | 30 | 5 | 2900 | 70 |
| IHF125-100-200 | 200 | 50 | 55 | 5 | 2900 | 65 |
| Type | Capacity | Head | Motor power | NPSHr(m) | Speed | Efficiency(%) |
| ( m3/h) | m | Kw | (m) | r/min | (%) | |
| IHF50-32-125 | 6.3 | 5 | 0.55 | 3 | 1450 | 45 |
| IHF50-32-160 | 6.3 | 8 | 0.55 | 3 | 1450 | 40 |
| IHF50-32-200 | 6.3 | 12.5 | 1.1 | 3 | 1450 | 33 |
| IHF65-50-125 | 12.5 | 5 | 0.55 | 3.5 | 1450 | 55 |
| IHF65-50-160 | 12.5 | 8 | 1.1 | 3.5 | 1450 | 51 |
| IHF65-40-200 | 12.5 | 12.5 | 1.5 | 3.5 | 1450 | 46 |
| IHF65-40-250 | 12.5 | 20 | 3 | 3.5 | 1450 | 43 |
| IHF80-65-125 | 25 | 5 | 1.1 | 4 | 1450 | 64 |
| IHF80-65-160 | 25 | 8 | 1.5 | 4 | 1450 | 62 |
| IHF80-50-200 | 25 | 12.5 | 2.2 | 4 | 1450 | 57 |
| IHF80-50-250 | 25 | 20 | 5.5 | 4 | 1450 | 51 |
| IHF100-80-125 | 50 | 5 | 1.5 | 4.5 | 1450 | 74 |
| IHF100-80-160 | 50 | 8 | 2.2 | 4.5 | 1450 | 69 |
| IHF100-65-200 | 50 | 12.5 | 5.5 | 4.5 | 1450 | 68 |
| IHF125-80-160 | 80 | 8 | 5.5 | 5 | 1450 | 74 |
| IHF125-100-200 | 100 | 12.5 | 11 | 5 | 1450 | 1 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
