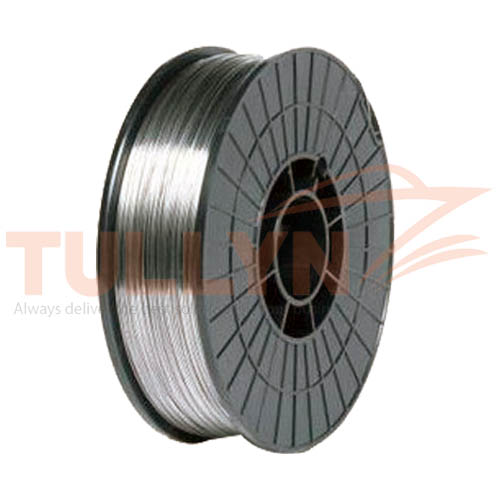

Incoloy 800H Ni-Fe-Cr Alloy Welding Wire
Incoloy 800H Ni-Fe-Cr Alloy Welding Wire Introduction
Incoloy 800H is similar to alloy 800 but with improved creep and stress-rupture properties for applications above 650 °C (1200 °F). Resistant to high-temperature oxidation, carburization, and nitridation, it is widely used in petrochemical and thermal processing.
Incoloy 800HT is similar to alloy 800H but with even more precisely controlled composition.
Alloys 800H and 800HT are the standard materials for intermediate temperatures (620–925 °C, or 1150–1700 °F). These alloys combine corrosion resistance with strength and metallurgical stability. Major applications include hydrogen reformer manifolds and pigtail piping, ethylene dichloride furnace tubing, transfer piping, and high-temperature pressure vessels.
Incoloy 800H /HT Ni-Fe-Cr Alloy Welding Wire Specification
| STANDARD | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
| WERKSTOFF NR. | 1.4876 | 1.4958 / 1.4876 | 1.4859 / 1.4876 |
| UNS | N08800 | N08810 | N08811 |
| JIS | NCF 800 | NCF 800H | NCF 800HT |
| BS | NA 15 | NA 15(H) | NA 15(HT) |
| GOST | ЭИ670 | ЭИ670 | ЭИ670 |
| AFNOR | Z8NC32-21 | Z8NC33-21 | – |
| EN | X10NiCrAlTi32-20 | X5NiCrAlTi31-20 | X8NiCrAlTi32-21 |
| OR | XH32T | XH32T | XH32T |
Incoloy 800H /HT Ni-Fe-Cr Alloy Welding Wire Typical Chemical Composition
| Grade | 800H | 800HT |
| C | 0.05 – 0.10 | 0.06 – 0.10 |
| Mn | 1.50 max | 1.50 max |
| Si | 1.00 max | 1.00 max |
| S | 0.015 max | 0.015 max |
| Cu | 0.75 max | 0.75 max |
| Fe | 39.50 min | 39.50 min |
| Ni | 30.00 – 35.00 | 30.00 – 35.00 |
| Cr | 19.00 – 23.00 | 19.00 – 23.00 |
| Al | 0.15 – 0.60 | 0.15 – 0.60ᴬ |
| Ti | 0.15 – 0.60 | 0.15 – 0.60ᴬ |
Incoloy 800H /HT Ni-Fe-Cr Alloy Welding Wire Typical Physical&Mechanical Properties
| Alloy | Incoloy 800 / 800H / 800HT |
| Density | 7.94 g/cm3 |
| Melting Point | 1385 °C (2525 °F) |
| Tensile Strength | Psi – 75,000 , MPa – 520 |
| Yield Strength (0.2%Offset) | Psi – 30,000 , MPa – 205 |
| Elongation | 30% |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
