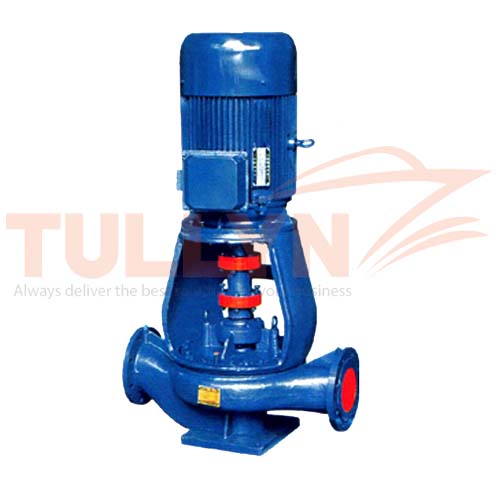

ISGB Pipeline Vertical Centrifugal Pump
ISGB Pipeline Vertical Centrifugal Pump Application
This pump is a new pump which is researched on the basic of ISG with the advantage of new style and high technology. This pump is especially different from others in the aspect of total structure which solved the problem of vertical pump supported by a motor.
It is convenient to use. It has more function than the normal vertical pump such as ISG, its a hot water circulation pump with the function of self-cooling.
ISGB Pipeline Vertical Centrifugal Pump is a most common vertical centrifugal pump, this pump has a simple structure and wild specifications with good efficiency.
This pump also is most common since it has a simple structure and it is most cheap in the relevant series.
The specifications can be ranged same to ISW pump.
This pump can take little spaces and can be lighter in weight.
Capacity: 1 to 1500 m³/h, head:10 to 300 m. (special demand can be negotiated)
ISGB Pipeline Vertical Centrifugal Pump Specification
| Type | Flow | Head | Efficence | Speed | Motor power | Cavitation |
| (m3 /h) | (m) | (%) | (r/min) | (kw) | (m) | |
| 65-100 | 25 | 12.5 | 69 | 2900 | 1.5 | 2.5 |
| 65-100A | 22.3 | 10 | 67 | 2900 | 1.1 | 2.5 |
| 65-125 | 25 | 20 | 68 | 2900 | 3 | 2.5 |
| 65-125A | 22.3 | 16 | 66 | 2900 | 2.2 | 2.5 |
| 65-160 | 25 | 32 | 63 | 2900 | 4 | 2.5 |
| 65-160A | 23.4 | 28 | 62 | 2900 | 4 | 2.5 |
| 65-160B | 21.6 | 24 | 58 | 2900 | 3 | 2.5 |
| 65-200 | 25 | 50 | 58 | 2900 | 7.5 | 2.5 |
| 65-200A | 23.5 | 44 | 57 | 2900 | 7.5 | 2.5 |
| 65-200B | 21.8 | 38 | 55 | 2900 | 5.5 | 2.5 |
| 65-250 | 25 | 80 | 50 | 2900 | 15 | 2.5 |
| 65-250A | 23.4 | 70 | 50 | 2900 | 11 | 2.5 |
| 65-250B | 21.6 | 60 | 49 | 2900 | 11 | 2.5 |
| 65-315 | 25 | 125 | 40 | 2900 | 30 | 2.5 |
| 65-315A | 23.7 | 113 | 40 | 2900 | 22 | 2.5 |
| 65-315B | 22.5 | 101 | 39 | 2900 | 18.5 | 2.5 |
| 65-315C | 20.6 | 85 | 38 | 2900 | 15 | 2.5 |
| 65-100(I) | 50 | 12.5 | 73 | 2900 | 3 | 3 |
| 65-100(I)A | 44.7 | 10 | 72 | 2900 | 2.2 | 3 |
| 65-125(I) | 50 | 20 | 72.5 | 2900 | 5.5 | 3 |
| 65-125(I)A | 45 | 16 | 71 | 2900 | 4 | 3 |
| 65-160(I) | 50 | 32 | 71 | 2900 | 7.5 | 3 |
| 65-160(I)A | 46.7 | 28 | 70 | 2900 | 7.5 | 3 |
| 65-160(I)B | 43.3 | 24 | 69 | 2900 | 5.5 | 3 |
| 65-200(I) | 50 | 50 | 67 | 2900 | 15 | 3 |
| 65-200(I)A | 47 | 44 | 66 | 2900 | 11 | 3 |
| 65-200(I)B | 43.5 | 38 | 65 | 2900 | 7.5 | 3 |
| 65-250(I) | 50 | 80 | 59 | 2900 | 22 | 3 |
| 65-250(I)A | 46.7 | 70 | 59 | 2900 | 18.5 | 3 |
| 65-250(I)B | 43.3 | 60 | 58 | 2900 | 15 | 3 |
| 65-315(I) | 50 | 125 | 54 | 2900 | 37 | 3 |
| 65-315(I)A | 46.5 | 110 | 54 | 2900 | 30 | 3 |
| 65-315(I)B | 44.5 | 100 | 53 | 2900 | 30 | 3 |
| 65-315(I)C | 41 | 85 | 51 | 2900 | 22 | 3 |
| 80-100 | 50 | 12.5 | 73 | 2900 | 3 | 3 |
| 80-100A | 44.7 | 10 | 72 | 2900 | 2.2 | 3 |
| 80-125 | 50 | 20 | 72.5 | 2900 | 5.5 | 3 |
| 80-125A | 45 | 16 | 71 | 2900 | 4 | 3 |
| 80-160 | 50 | 32 | 71 | 2900 | 7.5 | 3 |
| 80-160A | 46.7 | 28 | 70 | 2900 | 7.5 | 3 |
| 80-160B | 43.3 | 24 | 69 | 2900 | 5.5 | 3 |
| 80-200 | 50 | 50 | 67 | 2900 | 15 | 3 |
| 80-200A | 47 | 44 | 66 | 2900 | 11 | 3 |
| 80-200B | 43.5 | 38 | 65 | 2900 | 7.5 | 3 |
| 80-250 | 50 | 80 | 59 | 2900 | 22 | 3 |
| 80-250A | 46.7 | 70 | 59 | 2900 | 18.5 | 3 |
| 80-250B | 43.3 | 60 | 58 | 2900 | 15 | 3 |
| 80-315 | 50 | 125 | 54 | 2900 | 37 | 3 |
| 80-315A | 46.5 | 110 | 54 | 2900 | 30 | 3 |
| 80-315B | 44.5 | 100 | 53 | 2900 | 30 | 3 |
| 80-315C | 41 | 85 | 51 | 2900 | 22 | 3 |
| 80-100(I) | 100 | 12.5 | 76 | 2900 | 5.5 | 4.5 |
| 80-100(I)A | 89 | 10 | 74 | 2900 | 4 | 4.5 |
| 80-125(I) | 100 | 20 | 76 | 2900 | 11 | 4.5 |
| 80-125(I)A | 89 | 16 | 74 | 2900 | 7.5 | 4.5 |
| 80-160(I) | 100 | 32 | 76 | 2900 | 15 | 4.5 |
| 80-160(I)A | 93.5 | 28 | 74 | 2900 | 11 | 4.5 |
| 80-160(I)B | 86.6 | 24 | 72 | 2900 | 11 | 4.5 |
| 80-200(I) | 100 | 50 | 74 | 2900 | 22 | 4 |
| 80-200(I)A | 93.5 | 44 | 73 | 2900 | 18.5 | 4 |
| 80-200(I)B | 87 | 38 | 71 | 2900 | 15 | 4 |
| 80-250(I) | 100 | 80 | 69 | 2900 | 37 | 4 |
| 80-250(I)A | 93.5 | 70 | 68 | 2900 | 30 | 4 |
| 80-250(I)B | 87 | 60 | 66 | 2900 | 30 | 4 |
| 80-315(I) | 100 | 125 | 66 | 2900 | 75 | 4 |
| 80-315(I)A | 95 | 113 | 66 | 2900 | 55 | 4 |
| 80-315(I)B | 90 | 101 | 65 | 2900 | 45 | 4 |
| 80-315(I)C | 82 | 85 | 63 | 2900 | 37 | 4 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
