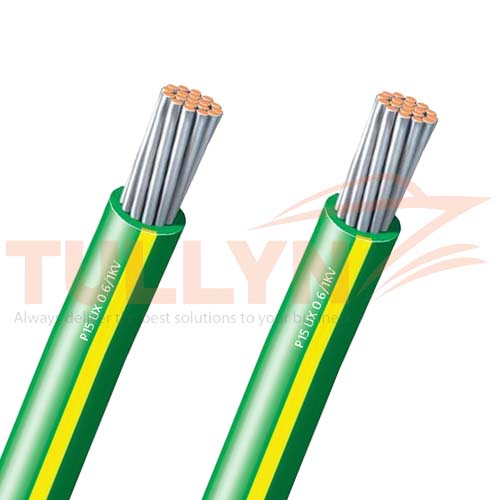

P15 UX Offshore Electrical Cable 0.6/1KV
P15 UX Offshore Electrical Cable 0.6/1KV Application
P15 UX Offshore Electrical Cables are flame retardant, low smoke and halogen free, used for earthing and bonding services.
These P15 UX cables are flame retardant, low smoke, halogen free and mud resistant. This Cable is intended for fixed installation for Earthing wire, bonding wire. These cables can be installed on drilling ships, drilling platforms ( jack up, semi-submersible), Production Platforms ( TLP, semi-submersible, SPAR, fixed platforms) and FPSO/FSO.
P15 UX Offshore Electrical Cable 0.6/1KV Standards
| Design | IEC60092-353 NEK606 |
| Conductor | IEC60228 |
| Insulation | IEC60092-351 |
| sheathed | IEC60092-359 |
| Flame Retardant | IEC 60332-1,IEC60332-3-22 |
| Smoke Density | IEC61034 |
P15 UX Offshore Electrical Cable 0.6/1KV Construction
| Classification | Code | Construction details |
| Conductor | Tinned Annealed Stranded Copper Wire | |
| Armor | X | Not Applicable |
| Outer Sheath | U | Halogen-free Thermosetting compound |
P15 UX Offshore Electrical Cable 0.6/1KV Electrical Characteristics:
| Nominal Cross Section Area | mm² | 10 | 16 | 25 | 35 | 50 | 70 |
| Nominal Conductor Diameter | mm | 4 | 5.1 | 6.5 | 7.4 | 8.7 | 10.3 |
| Maximum DC Resistant@20℃ | Ω/km | 1.84 | 1.16 | 0.734 | 0.529 | 0.391 | 0.27 |
| Continuous Current Rating@45℃1 Core | A | 72 | 96 | 127 | 157 | 196 | 242 |
| Short Circuit Current 1s | A | 1430 | 2290 | 3580 | 5010 | 7150 | 10020 |
| Operating Voltage | KV | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 |
| Nominal Cross Section Area | mm² | 95 | 120 | 150 | 185 | 240 | 300 |
| Nominal Conductor Diameter | mm | 12.2 | 13.8 | 15.1 | 17.0 | 19.6 | 21.9 |
| Maximum DC Resistant@20℃ | Ω/km | 0.195 | 0.154 | 0.126 | 0.1 | 0.0762 | 0.0607 |
| Continuous Current Rating@45℃1 Core | A | 293 | 339 | 389 | 444 | 522 | 601 |
| Short Circuit Current 1s | A | 13590 | 17170 | 21460 | 26470 | 34340 | 42930 |
| Operating Voltage | KV | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 |
P15 UX Offshore Electrical Cable 0.6/1KV Spec
| Construction No. of cores×Cross section (mm²) | Nominal Insulation Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
| 1×10 | 1.0 | 6.6 | 125 |
| 1×16 | 1.0 | 7.7 | 185 |
| 1×25 | 1.2 | 9.5 | 290 |
| 1×35 | 1.2 | 10.4 | 380 |
| 1×50 | 1.4 | 12.1 | 510 |
| 1×70 | 1.4 | 13.6 | 700 |
| 1×95 | 1.6 | 15.5 | 950 |
| 1×120 | 1.6 | 17.5 | 1205 |
| 1×150 | 1.8 | 19.4 | 1470 |
| 1×185 | 2.0 | 21.7 | 1875 |
| 1×240 | 2.2 | 24.7 | 2420 |
| 1×300 | 2.4 | 27.2 | 3060 |
Note: All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
