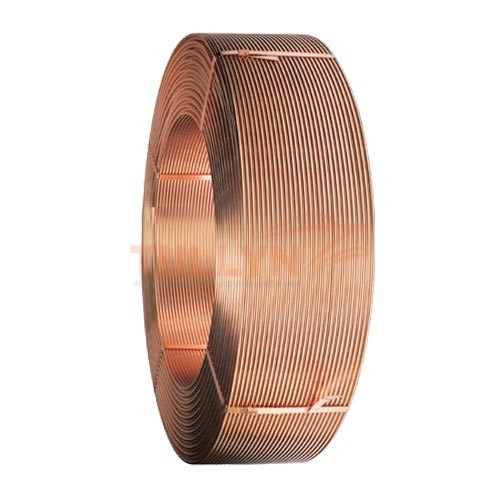

Level Wound Coil (LWC) Copper Tube

Application: LWC copper tube is suitable for long production runs for industrial applications and available in ultrathin walls, LWC coil is mainly used for Air Conditioning and Refrigeration, Heat Exchange.

Temper: O60 or O50

Level Wound Coil LWC Copper Tube and Coils

Level Wound Coil (LWC) Copper Tube and Coils Application:

Level Wound Coil LWC Copper Tubes feature minimum copper content of 99.9% as per IS-191 and are available in Forged / Hot Rolled / Extruded as well as Cold worked finish in different dimensions and specifications. These are also available in hard, half-hard as well as soft conditions. As the tubes comprise de-oxidized copper, it is not affected by reducing atmosphere and is well suited for welding and brazing applications.

Air Conditioner and Refrigerator Water Tube Service and Distribution Fire Protection, Solar, Fuel/Fuel Oil Natural Gas, Liquefied Petroleum (LP) Gas HVAC, Snow Melting, Drain, Waste, Vent Piping Re-drawing Use Heat Exchange Use

Level Wound Coil LWC Copper Tube and Coils Application Areas:

  • Air conditioner and refrigerator
  • Water tube service & distribution
  • Handling of Fire Protection, Solar, Fuel/Fuel Oil
  • Handling of Natural Gas, Liquefied Petroleum (LP) Gas
  • Handling of HVAC, Drain applications
  • Handling of Waste, Vent Piping needs
  • Re-drawing use
  • Heat exchange Use
  • Gas services for heating and cooking
  • Oil services for heating
  • Chilled water and refrigeration
  • Fire sprinkler systems
  • Air conditioning
  • Handling of steam
  • Medical gases
  • Pneumatics
  • Hydraulics
  • Wastewater

Level Wound Coil LWC Copper Tube and Coils Standard:

ASTM B280, ASTM B68, ASTM B75 standard, EN 12735 standard, AS 1571 standard and JIS H3300 standard.

Level Wound Coil LWC Copper Tube and Coils DIRECTION OF UNCOILING

For the creation of new articles, this important detail must be specified. The direction of uncoiling can be:

a) Clockwise (standard). When the coil is in a horizontal position, the tube ending in the inner layer of the coil is at the bottom.
b) Anti-clockwise (optional). When the coil is in a horizontal position, the tube ending in the inner layer of the coil is at the top.

Temper: O60 or O50

Package: with unit weight 100kgs more and packed individually by reel, 6-7 coils packed by one pallet

Level Wound Coil  LWC Copper Tube and Coils Packaging:

  • Level wound coils are provided on disposable cardboard, fiber core returnable reels,or bulk packed (without reels) at the customer’s option.
  • Coils are stacked on a wooden pallet and enclosed in stretch wrap.
  • The following types of outer packaging are currently available:
    Coils are stacked on a wooden pallet and enclosed in stretch wrap.
    The stack of coils are stretch-wrapped (reel or bulk). A spacer pallet is inserted in between the fourth and third coils to enable safe removal of the top coils.
  • Level wound coils are typically 24″ ID. Maximum OD of coils on reels is typically 41″ and bulk pack coils is 42″.
  • The standard coil height is 10″ when reel packaged. When bulk packaging, the height varies depending on size and weight of coil.

Level Wound Coil (LWC) Copper Tube and Coils Product code and size

Product Code Description
HTCC4 LWC Plain 4mmxLWC, soft annealed
HTCC5 LWC Plain 5mmxLWC, soft annealed
HTCC635 LWC Plain 1/4″xLWC, soft annealed
HTCC8 LWC Plain 8mmxLWC, soft annealed
HTCC952 LWC Plain 3/8″mmxLWC, soft annealed
HTCC127 LWC Plain 1/2″mmxLWC, soft annealed
HTCC14 LWC Plain 14mmxLWC, soft annealed
HTCC1588 LWC Plain 5/8″mmxLWC, soft annealed
HTCC1905 LWC Plain 3/4″mmxLWC, soft annealed
HTCC2223 LWC Plain 7/8″mmxLWC, soft annealed

Level Wound Coil Copper Tube and Coils Chemical and mechanical property

copper alloy No. chemical composition temper mechanical property
copper, % min, Phosphorus (%) tensile strength Elongation %
C12200 99.9 0.015-0.040 O60 ≥ 205 ≥ 40
C12200 99.9 0.015-0.040 O50 ≥ 245

Photographs are not to scale and do not represent detailed images of the respective products.
Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
