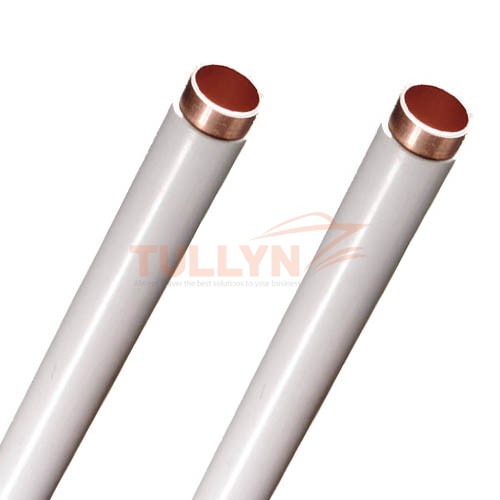

PE Coated Copper Pipe
PE Coated Copper Pipe APPLICATION
PE Coated Copper Pipe covers hi-density extruded polyethylene protective coating for use in line pipe. and it is a field-proven dual layer system that provides superior corrosion protection with a high resistance to cathodic disbondment. This durable coating is applied with a cross-head extrusion system that produces a seamless protection that is Impervious to moisture penetration and bacterial attack.
PE Coated Copper Tube is mainly used for fluid transmission of cool and hot water and drinking water, supplied as length and roll as per EN1057, ASTM B88, AS 1432 standards. Parallel loop insulator is for cold water and gear-shaped loop tube is for thermal water
Color code: White, Yellow/Green.
PE Coated Copper Pipe Standard: EN1057, ASTM B88
PE Coated Copper Pipe Feature:
different plastic color, like single color, double-color, three colors;
plastic-coated tube has parallel loop and gear-shapped loop;
we can make words on the surface of plastic tube according to customer demand;
PE Coated Copper Pipe Package:
The pipe bundled with the plastic bag, then put in the container，The Coil packed with carton, then put in the container.
PE Coated Copper Pipe Physical Properties of Copper Tube
| Copper Alloy No. | chemical composition | temper | mechanical property | |||||||
| copper %(min) |
phosphorus % |
tensile strength |
elongation % |
|||||||
| C12200 | 99.90 | 0.015-0.040 | H58 | ≥250 | / | |||||
| C12200 | 99.90 | 0.015-0.040 | O60 | ≥205 | / | |||||
PE Coated Copper Pipe Specifications(for reference only)
| DN | OD | Thickness | Gear-shaped loop | Pearallel loop | Foam | Maximum deviation | Length | Maximum deviation |
| (MM) | (MM) | (mm) | (mm) | (mm) | (mm) | (mm) | (m) | (mm) |
| 15 | 15 | 0.7 | 18.6 | 17 | 21.5 | ± 0.20 | 2.9-5.8 | 0-10 |
| 20 | 22 | 0.9 | 25.6 | 24 | 28.5 | |||
| 25 | 28 | 31.6 | 30 | / | ||||
| 32 | 35 | 1.2 | / | 37.6 | / | ± 0.30 | ||
| 40 | 42 | / | 44.6 | / | ||||
| 50 | 54 | / | 56.8 | / | ± 0.40 | |||
| 65 | 67 | / | 69.8 | / | ||||
| 80 | 76 | 1.5 | / | 78.8 | / | ± 0.50 |
Photographs are not to scale and do not represent detailed images of the respective products.
Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
