LWT Anchor
LWT Anchor Introduction
The lightweight anchor or LWT anchor is a superior holding power anchor (SHP) and can be up to 25% lighter than a standard anchor. The LWT is an offshore type anchor, excellent in normal sand or mud bottoms.

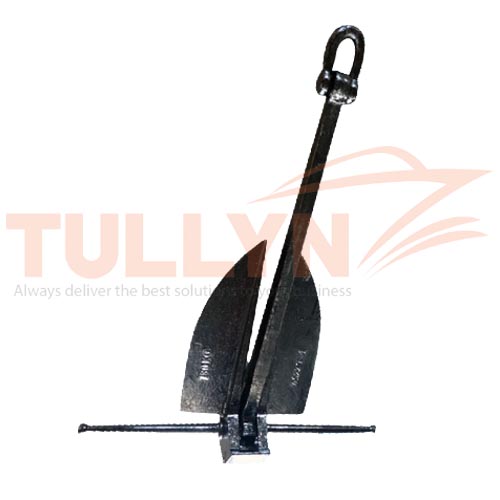

This anchor is easily recognizable due to the large pivoting fluke areas and the stock being mounted at the crown of the anchor. The anchor is of high quality and good stability. The weight of LWT Anchor is 227kgs-45,360kgs.
The LWT Offshore Anchor can be supplied with certification from any of the major classification societies

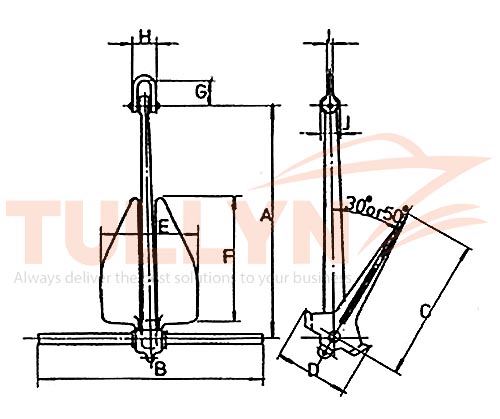

LWT Anchor Drawing
Lightweight Anchor LWT Anchor Drawing
LWT Anchor Specification
| Weight | A | B | C | D | E | G | H | I | J |
| kgs | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 227 | 1285 | 1218 | 787 | 438 | 505 | 206 | 135 | 34 | 104 |
| 340 | 1471 | 1394 | 901 | 502 | 578 | 235 | 154 | 38 | 119 |
| 454 | 1619 | 1535 | 992 | 552 | 636 | 259 | 169 | 42 | 131 |
| 680 | 1853 | 1757 | 1135 | 632 | 728 | 296 | 194 | 48 | 150 |
| 907 | 2040 | 1933 | 1250 | 696 | 802 | 326 | 208 | 53 | 166 |
| 1134 | 2197 | 2083 | 1346 | 750 | 864 | 352 | 230 | 57 | 178 |
| 3160 | 2335 | 2213 | 1432 | 797 | 918 | 374 | 244 | 61 | 190 |
| 1588 | 2458 | 2330 | 1506 | 839 | 966 | 393 | 257 | 64 | 199 |
| 1815 | 2570 | 2436 | 1573 | 877 | 1010 | 411 | 269 | 67 | 208 |
| 2041 | 2673 | 2533 | 1637 | 912 | 1053 | 427 | 280 | 70 | 217 |
| 2268 | 2768 | 2623 | 1696 | 945 | 1088 | 443 | 290 | 72 | 224 |
| 2722 | 2941 | 2788 | 1802 | 1003 | 1156 | 471 | 308 | 77 | 238 |
| 3175 | 3097 | 2935 | 1809 | 1057 | 1217 | 495 | 324 | 81 | 251 |
| 3629 | 3238 | 3069 | 1983 | 1104 | 1273 | 518 | 338 | 85 | 262 |
| 4082 | 3368 | 3192 | 2063 | 1194 | 1324 | 539 | 352 | 88 | 273 |
| 4536 | 3488 | 3306 | 2173 | 1190 | 1371 | 558 | 365 | 91 | 284 |
| 5443 | 3707 | 3513 | 2270 | 1265 | 1457 | 593 | 388 | 97 | 300 |
| 5897 | 3807 | 3608 | 2332 | 1300 | 1496 | 609 | 398 | 99 | 309 |
| 6000 | 3829 | 3629 | 2346 | 1306 | 1505 | 613 | 401 | 100 | 311 |
| 6350 | 3902 | 3698 | 2390 | 1331 | 1534 | 624 | 408 | 102 | 317 |
| 6804 | 3993 | 3784 | 2446 | 1362 | 1569 | 639 | 418 | 104 | 324 |
| 7258 | 4080 | 3867 | 2500 | 1392 | 1604 | 653 | 427 | 106 | 331 |
| 8165 | 4243 | 4022 | 2600 | 1448 | 1668 | 679 | 444 | 111 | 344 |
| 9072 | 4394 | 4166 | 2692 | 1498 | 1727 | 703 | 460 | 115 | 357 |
| 9980 | 4537 | 4300 | 2780 | 1548 | 1783 | 726 | 475 | 118 | 368 |
| 11340 | 4733 | 4487 | 2900 | 1615 | 1860 | 757 | 495 | 124 | 385 |
| 13608 | 5030 | 4768 | 3082 | 1716 | 1977 | 805 | 256 | 131 | 408 |
| 15876 | 5295 | 5020 | 3244 | 1806 | 2081 | 847 | 554 | 138 | 430 |
| 18144 | 5536 | 5248 | 3392 | 1887 | 2276 | 886 | 579 | 145 | 450 |
| 20412 | 5759 | 5459 | 3528 | 1965 | 2264 | 921 | 603 | 150 | 467 |
| 22680 | 5964 | 5653 | 3654 | 2035 | 2344 | 954 | 624 | 156 | 484 |
| 27216 | 6338 | 6007 | 3883 | 2162 | 2491 | 1014 | 663 | 165 | 514 |
| 31752 | 6673 | 6324 | 4088 | 2176 | 2624 | 1068 | 698 | 174 | 541 |
| 36288 | 6976 | 6612 | 4273 | 2380 | 2742 | 1116 | 730 | 182 | 566 |
| 40824 | 7255 | 6788 | 4445 | 2475 | 2852 | 1161 | 759 | 189 | 589 |
| 45360 | 7515 | 7122 | 4604 | 2564 | 2954 | 1202 | 786 | 196 | 610 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
