Sandig Plough Anchor
Sandig Plough Anchor Introduction
The Sandig Plough Anchor is usually used for mooring of fish farms and other aquaculture installations. This kind of Plough anchor has a good holding Power and usually has a good economical price. The most popular Plough anchor is the SANDIG design that we can produce from 150 kgs up to 3,000 kgs. Sandig Plough anchor is introduced to suit different seabed condition.
The Plough Anchor can be supplied with certification from any of the major classification societies

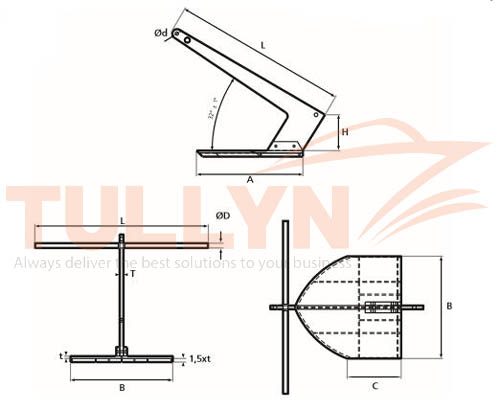

Sandig Plough Anchor Drawing
Plough Anchor Drawing
Sandig Plough Anchor Specification
| Weight | A | B | C | t | T | L | H | Φd | ΦD |
| kg | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 300 | 1030 | 945 | 550 | 20 | 34 | 1650 | 393 | 50 | 50 |
| 500 | 1290 | 1220 | 650 | 22 | 40 | 2100 | 440 | 50 | 60 |
| 700 | 1400 | 1280 | 700 | 28 | 45 | 2350 | 492 | 60 | 60 |
| 1000 | 1560 | 1480 | 780 | 30 | 50 | 2590 | 551 | 60 | 70 |
| 1500 | 1760 | 1690 | 890 | 39 | 60 | 2865 | 594 | 60 | 80 |
| 2000 | 1970 | 1840 | 940 | 40 | 65 | 3000 | 712 | 75 | 90 |
| 2500 | 2100 | 1980 | 970 | 45 | 70 | 3200 | 765 | 80 | 95 |
| 3000 | 2200 | 2070 | 1050 | 50 | 75 | 3355 | 950 | 85 | 100 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
