Marine Ladder Type Fender
Marine Ladder Type Fender Introduction

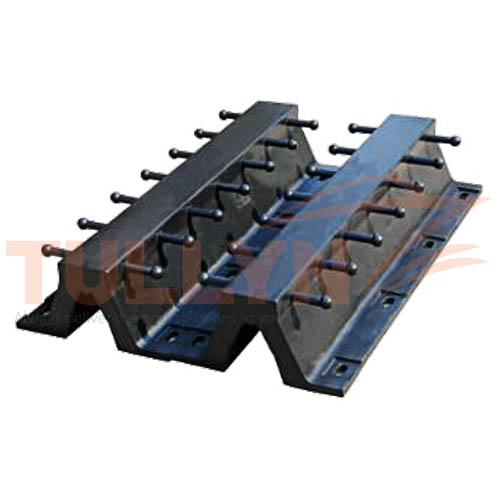

The marine ladder type fender mainly installs vertically on the quay wall functioned both as rubber fender and ladder. rubber fender mainly vertical installed in the side of dock, it is used for a small vessel in the dock. It is designed on the basis of the super arch rubber fender.
It has the same hole pitch as the arch type fender. It adds up and down handrail. it has a double function as ladder and fender. This fender is easy and safe to install and use. It is reliable with long service life.
The Marine Ladder Type Fender can be supplied with certification from any of the major classification societies.

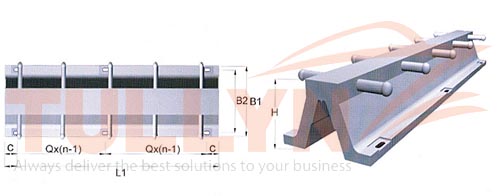

Marine Ladder Type Fender Drawing
Marine Ladder Type Fender Drawing
Marine Ladder Type Fender Specification
| Model | L1 | L | Q | c | B1 | B2 | H | J | K | n |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Type | # Fastening P Points |
|
| H200x1500 | 1500 | 1500 | 600/700 | 100 | 400 | 320 | 200 | 270 | M24 | 3 |
| H200x1800 | 1800 | 1800 | 800 | 100 | 400 | 320 | 200 | 270 | M24 | 3 |
| H200x2100 | 2100 | 2100 | 600/700 | 100 | 400 | 320 | 200 | 270 | M24 | 4 |
| H200x2400 | 2400 | 2400 | 700/800 | 100 | 400 | 320 | 200 | 270 | M24 | 4 |
| H200x2700 | 2700 | 2700 | 800/900 | 100 | 400 | 320 | 200 | 270 | M24 | 4 |
| H200x3000 | 3000 | 3000 | 700 | 100 | 400 | 320 | 200 | 270 | M24 | 5 |
| H300X1000 | 1150 | 1000 | 870 | 140 | 600 | 490 | 300 | 300 | M30 | 2 |
| H300x1500 | 1650 | 1500 | 685 | 140 | 600 | 490 | 300 | 300 | M30 | 3 |
| H300x2000 | 2150 | 2000 | 625 | 140 | 600 | 490 | 300 | 300 | M30 | 4 |
| H300x2500 | 2650 | 2500 | 790 | 140 | 600 | 490 | 300 | 300 | M30 | 4 |
| H300x3000 | 3150 | 3000 | 725 | 140 | 600 | 490 | 300 | 300 | M30 | 5 |
| H300X3500 | 3650 | 3500 | 674 | 140 | 600 | 490 | 300 | 300 | M30 | 6 |
| H400x1000 | 1200 | 1000 | 900 | 150 | 800 | 670 | 400 | 360 | M36 | 2 |
| H400x1500 | 1700 | 1500 | 700 | 150 | 800 | 670 | 400 | 360 | M36 | 3 |
| H400x2000 | 2200 | 2000 | 635 | 150 | 800 | 670 | 400 | 360 | M36 | 4 |
| H400x2500 | 2700 | 2500 | 800 | 150 | 800 | 670 | 400 | 360 | M36 | 4 |
| H400x3000 | 3200 | 3000 | 725 | 150 | 800 | 670 | 400 | 360 | M36 | 5 |
| H400x3500 | 3700 | 3500 | 680 | 150 | 800 | 670 | 400 | 360 | M36 | 6 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
