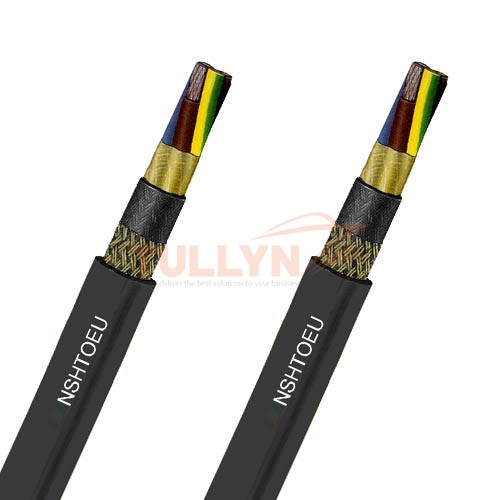

NSHTOEU Low Voltage Drum Reeling Cable
NSHTOEU EPR PCP Low Voltage Drum Reeling Cable Application
NSHTOEU EPR PCP Low Voltage Reeling Cable is mainly for the connection of hoisting and hauling systems and similar equipment using positive cable guidance, under high mechanical loads in dry and damp areas, outdoors and in areas with a high risk of explosion.
Their special design features make these cables particularly suitable for operations involving frequent reeling and unreeling or where cables are constantly deflected over pulleys (cable tenders).
NSHTOEU EPR PCP Low Voltage Reeling Cable is a robust and all weather resistant cable also found in rough mining operations, flexible handling equipment and in railway motors. These cables are suitable for outdoor installations in dry, damp or wet places. Ozone and UV resistant.
NSHTOEU EPR PCP Low Voltage Drum Reeling Cable Construction
| Conductor: | Class 5 or 6 – flexible tinned copper,According to VDE 0295 |
| Earth Conductor: | Green/yellow |
| Core Insulation: | Rubber |
| Cores: | Twisted in layers |
| Core Marking: | Up to 5 cores: colour coded in accordance to VDE 0293,7 cores and over: black with printed consecutive number coding |
| Outer Sheath: | Black made of neoprene with incorporated vulcanised fabric braiding |
NSHTOEU EPR PCP Low Voltage Drum Reeling Cable Technical Data
| Nominal voltage | Uo/U:0.6/1 kV |
| Maximum operating voltage in AC systems | Um:1.2KV |
| Maximum operating voltage in DC systems | Vm:1.8KV |
| Test voltage: | |
| – Power | 2.5 kV in AC |
| – Control | 2.0 kV in AC |
| Current rating (A) | according to DIN VDE 0298 part 4, |
| Max. temperature at the conductor : | |
| – in service | + 90 °C |
| – under short-circuit conditions | + 200 °C |
| Max. surface temperature : | |
| – fixed installation | – 45 °C up to + 80 °C |
| – mobile operation | – 35 °C up to + 80 °C |
NSHTOEU EPR PCP Low Voltage Drum Reeling Cable Specification
| Number of cores and Cross-section area |
Outer diameter | Weight | |
| (mm2) | Min. (mm) | Max. (mm) | (kg/km) |
| 3 x 1.5 | 12 | 14 | 210 |
| 4 x 1.5 | 13 | 15 | 250 |
| 5 x 1.5 | 14 | 16 | 285 |
| 7 x 1.5 | 18 | 20 | 405 |
| 12 x 1.5 | 20 | 22 | 570 |
| 18 x 1.5 | 24 | 26 | 790 |
| 24 x 1.5 | 27 | 29 | 1,000 |
| 30 x 1.5 | 30 | 32 | 1,215 |
| 42 x 1.5 | 36 | 39 | 1,700 |
| 4 x 2.5 | 15 | 17 | 320 |
| 5 x 2.5 | 17 | 19 | 430 |
| 7 x 2.5 | 20 | 22 | 525 |
| 12 x 2.5 | 23 | 25 | 750 |
| 18 x 2.5 | 27 | 29 | 1,060 |
| 24 x 2.5 | 32 | 34 | 1,455 |
| 30 x 2.5 | 33 | 35 | 1,575 |
| 50 x 2.5 | 45 | 47 | 2,855 |
| 4 x 4 | 18 | 20 | 465 |
| 4 x 6 | 20 | 22 | 585 |
| 4 x 10 | 24 | 26 | 900 |
| 4 x 16 | 27 | 29 | 1,235 |
| 4 x 25 | 33 | 35 | 1,830 |
| 4 x 35 | 36 | 38 | 2,360 |
| 4 x 50 | 42 | 44 | 3,210 |
| 4 x 70 | 47 | 49 | 4,345 |
| 4 x 95 | 54 | 56 | 5,565 |
| 4 x 120 | 61 | 63 | 6,895 |
| 5 x 4 | 19 | 21 | 550 |
| 5 x 6 | 22 | 24 | 730 |
Options:
- Further numbers of cores and cross-section upon request
- Integrated BUS system cable
- Integrated Optical Fiber Elements
- Special cold resistant compound.
Please noted:
1)Packing in drums or roll, or by customer request.
2)Festoon application it is not recommended to have a cross-section beyond 3×50²!
3)regular delivery time is about 25 working days.for some type cable, delivery time can be expedited within 10~15 working days.
The above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes.All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
