YSLTOE Fiber Optic Basket Cable 300/500V
YSLTOE Fiber Optic Basket Cable 300/500V Application
YSLTOE Fiber Optic Basket Cable is mainly be used on the latest generations of high-speed container cranes with gravity-fed collector baskets. They combine the features of superior flexibility with additional ballast needed to operate at speeds of up to 160 meters/min (8.75 ft/sec).
YSLTOE Basket Cable is used for load lifting equipment, e.g. spreader with high mechanical stress in gravity fed collector basket operation. Installation of the cable must be laid into the basket in a counter clockwise direction – detailed instructions are available on request.
YSLTOE Fiber Optic Basket Cable 300/500V Construction
|Conductor:||Bare Electrolytic copper, extremely fine stranded, class FS. DIN VDE 0295|
|Insulation:||Basic material PVC
Insulation compound YI 2. DIN VDE 0295
|Core identification:||Black insulation with light printed numbers
Protective earth conductor – green/ yellow
|Core assembly:||Cores laid up into bundles|
|Bundle assembly:||Bundles laid up around the central support element|
|Support element:||Aramide threads woven round lead ball cords, arranged centrally. The breaking load is rated to provide a safety factor of 5 when the cable is suspended vertically for 50 m.|
|Outer sheath:||PU Compound 11YM1|
YSLTOE Fiber Optic Basket Cable 300/500V Technical Data
|Rated Voltage:||Uo/U = 300/500 kV|
|AC Test Voltage:||2.0 kV, 5 min|
|Current Carrying Capacity:||According to DIN VDE 0298, Part4|
|Ambient Temperature:||Fully Flexible Operation : 20 °C to + 60 °C
Fixed installation: -20 °C to + 60 °C
|Max. operating temperature of the conductor:||70 °C|
|Max. permissible short circuit temperature of the conductor||150 °C|
|Tensile Load:||Increased tensile load through additional support elements|
|Hoist Travel Speed:||Up to 160 m/min|
|Basket design||Dimensions depending on system|
|Weather resistance||Unrestricted use outdoors and indoors, resistant to ozone,UV and moisture|
YSLTOE Fiber Optic Basket Cable 300/500V Specification
|Number of cores and nominal cross-section||Min.Overall Diameter of cable||Max.Overall Diameter of cable||Approx. net weight(kg/km)|
|30 x 2.5 + 6 x 1LWL||35.1||38.1||2300|
|32 x 2.5 + 4 x 3 LWL||35.1||38.1||2360|
|36 x 2.5 + 6 x 1 LWL||37.5||40.5||3060|
|42 x 2.5 + 6 x 1 LWL||48.1||51.1||4150|
|52 x 2.5 + 2 x 3 LWL||46.7||49.7||3460|
|32 x 3.5 + 4 x 1 LWL||38.7||41.7||3330|
- Further numbers of cores and cross-section upon request
- Integrated Optical Fiber Elements
- Special cold resistant compound.

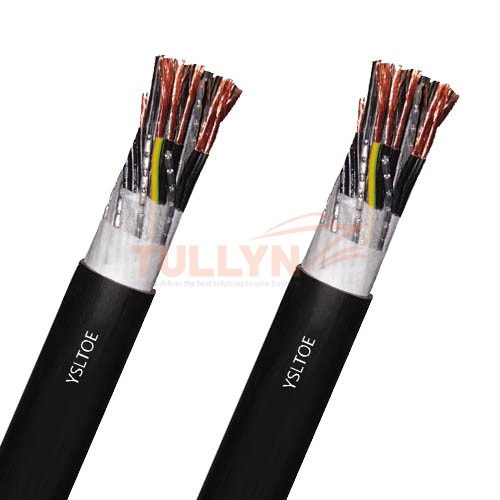

- Photographs are not to scale and do not represent detailed images of the respective products.
1)Packing in drums or roll, or by customer request.
2)Festoon application it is not recommended to have a cross-section beyond 3×50²!
3)regular delivery time is about 25 working days.for some type cable, delivery time can be expedited within 10~15 working days.
The above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes.All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
