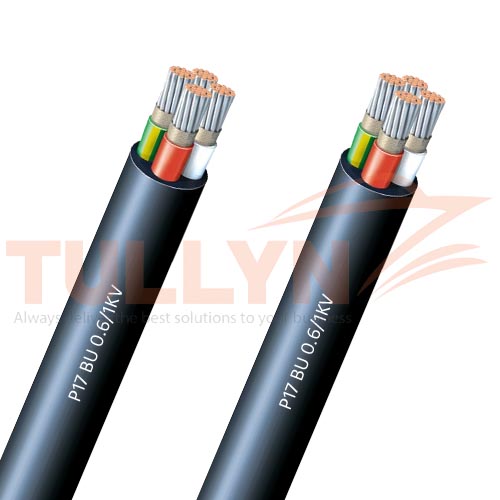

P17 BU Unarmored Fire Resistant Cable 0.6/1Kv
P17 BU Unarmored Fire Resistant Cable 0.6/1Kv Application
P17 BU Unarmored Fire Resistant Cable 0.6/1Kv is used for fixed installation on offshore units in all locations except where there are mud projections. P17 BU type meets IEC 60331 fire resistant performances, withstands the IEC 60332-3-22 fire test on bunched cables.
All materials used to manufacture this cable are halogen-free. This design ensures that non-corrosive and low toxic gas in case of fire. These P17 BU cables can be installed on drilling ships, drilling platforms ( jack up, semi-submersible), Production Platforms ( TLP, semi-submersible, SPAR, fixed platforms) and FPSO/FSO.
P17 BU Unarmored Fire Resistant Cable 0.6/1Kv Standards
| Design | IEC60092-353 |
| Conductor | IEC60228 |
| Insulation | IEC60092-351 |
| sheathed | IEC60092-359 |
| Flame Retardant | IEC 60332-1,IEC60332-3-22 |
| Smoke Density | IEC61034 |
P17 BU Unarmored Fire Resistant Cable 0.6/1Kv Construction
| Classification | Code | Construction details |
| Conductors | Tinned annealed stranded copper to IEC 60228 class 2. | |
| Insulation | B | Mica tape + Halogen free EPR. |
| Outer Sheath | U | Halogen free thermosetting compound, SHF2, colored black. |
P17 BU Unarmored Fire Resistant Cable 0.6/1Kv Electrical Characteristics
| Nominal Cross Section Area | mm² | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 25 | 35 |
| Nominal Conductor Diameter | mm | 1.6 | 2.1 | 2.6 | 3.2 | 4 | 5.1 | 6.5 | 7.4 |
| Maximum DC Resistant@20℃ | Ω/km | 12.2 | 7.56 | 4.7 | 3.11 | 1.84 | 1.16 | 0.734 | 0.529 |
| Continuous Current Rating@45℃1 Core |
A | 23 | 30 | 40 | 52 | 72 | 96 | 127 | 157 |
| Continuous Current Rating@45℃2 Core |
A | 20 | 26 | 34 | 44 | 61 | 82 | 108 | 133 |
| Continuous Current Rating@45℃3&4 Core |
A | 16 | 21 | 28 | 36 | 50 | 67 | 89 | 110 |
| Short Circuit Current 1s | A | 210 | 360 | 570 | 860 | 1430 | 2290 | 3580 | 5010 |
| Operating Voltage | KV | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 |
| Nominal Cross Section Area | mm² | 50 | 70 | 95 | 120 | 150 | 185 | 240 | 300 |
| Nominal Conductor Diameter | mm | 8.7 | 10.3 | 12.2 | 13.8 | 15.1 | 17 | 19.6 | 21.9 |
| Maximum DC Resistant@20℃ | Ω/km | 0.391 | 0.27 | 0.195 | 0.154 | 0.126 | 0.1 | 0.0762 | 0.0607 |
| Continuous Current Rating@45℃1 Core |
A | 196 | 242 | 293 | 339 | 389 | 444 | 522 | 601 |
| Continuous Current Rating@45℃2 Core |
A | 167 | 206 | 249 | 288 | 331 | 444 | 444 | 511 |
| Continuous Current Rating@45℃3&4 Core |
A | 137 | 169 | 205 | 237 | 272 | 311 | 365 | 421 |
| Short Circuit Current 1s | A | 7150 | 10020 | 13590 | 17170 | 21460 | 26470 | 34340 | 42930 |
| Operating Voltage | KV | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 |
Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.
Ambient Temperature Correction Factors
| Ambient Temperature Correction Factors | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| Rating Factor | 1.1 | 1.05 | 1.0 | 0.94 | 0.88 | 0.82 | 0.74 | 0.67 | 0.58 | 0.47 |
P17 BU Unarmored Fire Resistant Cable 0.6/1Kv Specification
| Construction No. of cores×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| (mm²) | mm | mm | mm | kg/km |
| 1×1.5 | 1 | 1 | 6.4 | 65 |
| 1×2.5 | 1 | 1 | 6.8 | 75 |
| 1×4 | 1 | 1 | 7.4 | 95 |
| 1×6 | 1 | 1 | 7.9 | 120 |
| 1×10 | 1 | 1.1 | 8.8 | 170 |
| 1×16 | 1 | 1.1 | 10.2 | 240 |
| 1×25 | 1.2 | 1.2 | 12 | 360 |
| 1×35 | 1.2 | 1.2 | 13.1 | 455 |
| 1×50 | 1.4 | 1.3 | 14.7 | 600 |
| 1×70 | 1.4 | 1.4 | 16.6 | 805 |
| 1×95 | 1.6 | 1.5 | 19 | 1095 |
| 1×120 | 1.6 | 1.5 | 20.6 | 1345 |
| 1×150 | 1.8 | 1.6 | 22.7 | 1635 |
| 1×185 | 2 | 1.7 | 25.2 | 2070 |
| 1×240 | 2.2 | 1.8 | 28.4 | 2655 |
| 1×300 | 2.4 | 1.9 | 31.1 | 3335 |
| 2×1.5 | 1 | 1.1 | 10.3 | 155 |
| 2×2.5 | 1 | 1.2 | 11 | 190 |
| 2×4 | 1 | 1.2 | 12.3 | 250 |
| 2×6 | 1 | 1.3 | 13.4 | 310 |
| 2×10 | 1 | 1.3 | 15.6 | 445 |
| 2×16 | 1 | 1.4 | 18.2 | 635 |
| 2×25 | 1.2 | 1.6 | 22 | 970 |
| 2×35 | 1.2 | 1.7 | 24 | 1215 |
| 2×50 | 1.4 | 1.8 | 27.4 | 1615 |
| 2×70 | 1.4 | 1.9 | 32.6 | 2335 |
| 2×95 | 1.6 | 2.1 | 37.6 | 3155 |
| 2×120 | 1.6 | 2.3 | 41.2 | 3875 |
| 2×150 | 1.8 | 2.4 | 45.4 | 4725 |
| 2×185 | 2 | 2.6 | 50.2 | 5845 |
| 2×240 | 2.2 | 2.8 | 56.8 | 7570 |
| 2×300 | 2.4 | 3.1 | 63 | 9395 |
| 3×1.5 | 1 | 1.2 | 10.9 | 180 |
| 3×2.5 | 1 | 1.2 | 11.9 | 230 |
| 3×4 | 1 | 1.2 | 13.1 | 295 |
| 3×6 | 1 | 1.3 | 14.2 | 375 |
| 3×10 | 1 | 1.4 | 16.5 | 550 |
| 3×16 | 1 | 1.5 | 19.3 | 795 |
| 3×25 | 1.2 | 1.6 | 23.5 | 1220 |
| 3×35 | 1.2 | 1.7 | 25.6 | 1545 |
| 3×50 | 1.4 | 1.9 | 29.5 | 2075 |
| 3×70 | 1.4 | 2 | 33.2 | 2775 |
| 3×95 | 1.6 | 2.2 | 38.5 | 3800 |
| 3×120 | 1.6 | 2.4 | 42 | 4685 |
| 3×150 | 1.8 | 2.5 | 46.3 | 5685 |
| 3×185 | 2 | 2.7 | 51.8 | 7215 |
| 3×240 | 2.2 | 3 | 58 | 9320 |
| 3×300 | 2.4 | 3.2 | 67.6 | 12280 |
| 4×1.5 | 1 | 1.2 | 12.1 | 225 |
| 4×2.5 | 1 | 1.2 | 13 | 275 |
| 4×4 | 1 | 1.3 | 14.5 | 365 |
| 4×6 | 1 | 1.4 | 15.8 | 490 |
| 4×10 | 1 | 1.4 | 18.4 | 695 |
| 4×16 | 1 | 1.5 | 21.5 | 1005 |
| 4×25 | 1.2 | 1.7 | 26.1 | 1550 |
| 4×35 | 1.2 | 1.8 | 28.5 | 1970 |
| 4×50 | 1.4 | 2 | 32.8 | 2645 |
| 4×70 | 1.4 | 2.2 | 36.9 | 3545 |
| 4×95 | 1.6 | 2.4 | 42.8 | 4850 |
| 4×120 | 1.6 | 2.6 | 46.5 | 5965 |
| 4×150 | 1.8 | 2.8 | 54.6 | 8020 |
| 4×185 | 2 | 3 | 60.3 | 9930 |
| 4×240 | 2.2 | 3.3 | 68.4 | 12920 |
| 4×300 | 2.4 | 3.5 | 75.5 | 15995 |
| 5×1.5 | 1 | 1.3 | 14.3 | 265 |
| 6×1.5 | 1 | 1.3 | 15.6 | 305 |
| 7×1.5 | 1 | 1.3 | 15.6 | 320 |
| 8×1.5 | 1 | 1.4 | 18.4 | 425 |
| 9×1.5 | 1 | 1.5 | 19.9 | 440 |
| 10×1.5 | 1 | 1.5 | 20.2 | 495 |
| 12×1.5 | 1 | 1.5 | 20.9 | 530 |
| 14×1.5 | 1 | 1.6 | 21.9 | 630 |
| 16×1.5 | 1 | 1.6 | 23.3 | 690 |
| 19×1.5 | 1 | 1.6 | 24.6 | 790 |
| 20×1.5 | 1 | 1.7 | 26.1 | 880 |
| 23×1.5 | 1 | 1.8 | 28.4 | 1030 |
| 24×1.5 | 1 | 1.8 | 29.2 | 1035 |
| 27×1.5 | 1 | 1.8 | 29.9 | 1080 |
| 30×1.5 | 1 | 1.9 | 31.1 | 1250 |
| 33×1.5 | 1 | 1.9 | 32.3 | 1335 |
| 37×1.5 | 1 | 2 | 33.8 | 1445 |
| 44×1.5 | 1 | 2.2 | 38.4 | 1765 |
| 5×2.5 | 1 | 1.3 | 14.5 | 340 |
| 6×2.5 | 1 | 1.4 | 17 | 395 |
| 7×2.5 | 1 | 1.4 | 17 | 420 |
| 8×2.5 | 1 | 1.5 | 20 | 535 |
| 9×2.5 | 1 | 1.5 | 21.5 | 560 |
| 10×2.5 | 1 | 1.5 | 21.8 | 620 |
| 12×2.5 | 1 | 1.6 | 22.7 | 680 |
| 14×2.5 | 1 | 1.6 | 23.9 | 810 |
| 16×2.5 | 1 | 1.7 | 25.4 | 895 |
| 19×2.5 | 1 | 1.7 | 26.8 | 1000 |
| 20×2.5 | 1 | 1.8 | 28.4 | 1140 |
| 23×2.5 | 1 | 1.9 | 30.9 | 1325 |
| 24×2.5 | 1 | 1.9 | 31.8 | 1340 |
| 27×2.5 | 1 | 1.9 | 32.5 | 1395 |
| 30×2.5 | 1 | 2 | 33.9 | 1620 |
| 33×2.5 | 1 | 2 | 35.2 | 1735 |
| 37×2.5 | 1 | 2.1 | 36.8 | 1865 |
| 44×2.5 | 1 | 2.3 | 41.8 | 2295 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
