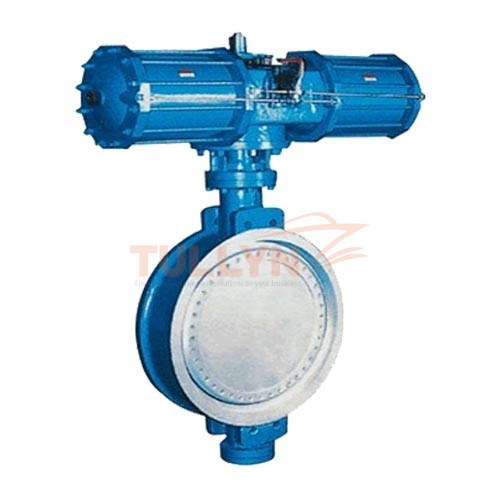

Pneumatic Flange Butterfly Valve

Material: Carbon steel, Stainless steel
Driving mode: Manual, worm gear, pneumatic, electric
Application: Regulate flow or closure medium in metallurgy, petroleum, power and other industries.
Size: DN50-2000

Pneumatic Flange Butterfly Valve

Pneumatic Flange Butterfly Valve Introduction

The pneumatic flange butterfly valve is based on imported advanced technique. It adopts fine J shape elastic seal ring and triple offset multilayer metal hard sealing structure. It is applied to the temperature below 425℃.

The pneumatic flange butterfly valve is widely used to regulate flow or closure medium in metallurgy, petroleum, power and other industries. The valve utilizes triple offset sealing structure.

The valve seat and disc made of stainless steel with different hardness, have good corrosion resistance and long service life. The valve has bi-directional sealing, according to GB/T13927-92 pressure test standard.

Pneumatic flange butterfly valve Features

1. The valve adopts triple offset sealing structure which cannot cause abrasion to valve seat and disc, having a good seal.
2. Seal ring made of stainless steel combines with the advantages of the metal hard seal and elastic seal. No matter under low or high temperature, seal ring has a good seal.
3. Disc overlay with STL has abrasion resistance and long service life.
4. Large size butterfly valve, utilizing lattice structure, has high strength, large flow area and small flow resistance.
5. The valve has a bi-directional seal. It can be installed at any position without the limitation of medium flow and space.
6. Actuating device adopts multistage installment which is convenient to use.

Pneumatic Flange Butterfly Valve Technical parameter

Nominal diameter DN(mm) 50~2000
Nominal Pressure PN(MPa) 0.6 1.0 1.6 2.5
Seal test(MPa) 0.66 1.1 1.76 2.75
Strength test(MPa) 0.9 1.5 2.4 3.75
Applicable temperature Carbon steel: -29℃~425℃; stainless steel: -40℃~650℃
Applicable medium Water, air, gas, oil and weak corrosive fluid
Leakage rate GB/T13927-92
Driving mode Manual, worm gear, pneumatic, electric
