PV-CQ DC1500V PSE Certified Solar Cable

Application: PV-CQ DC1500V Wire may be used in DC rated voltage below 1500V(DC) solar power system, between the solar panel module & junction box and junction box & power controller.

Certification: PSE

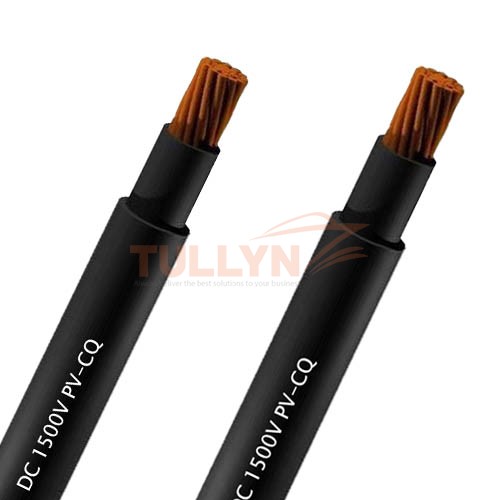

PV-CQ DC1500V PSE Certified Solar Wire

PV-CQ DC1500V PSE Certified Solar Wire Application

These PV-CQ cables have superior environmental performance in terms of weather, heat and cold resistance, and are best suited for cabling in solar power generation systems.This cable is sunlight, ozone, UV, and moisture resistant. Photovoltaic Wire (PV Wire) may be used as wiring for solar panels, as the interconnection wiring of grounded and ungrounded photovoltaic power systems.

Characteristic:
Electron-beam cross-linked compounds; UV, ozone and hydrolysis resistant; High temperature resistant, the materials do not melt or flow; Good cold flexibility; Very long expected service lifespan of more than 25 years at 90℃; Compatible to all popular connectors, PSE Certified

PV-CQ DC1500V PSE Certified Solar Wire Construction

PV-CQ DC1500V JCS 4517 Solar Wire Construction
Conductor material: Stranded bare copper or tinned copper, electrical Property & Structure in accordance with JIS C 3102 and JIS C 3152 flexible conductor
Insulation: LSZH electron-beam cross-linked Polyolefin copolymer, ROHS material
Insulation: LSZH&UV-resistant electron-beam cross-linked thermosetting Polyolefin copolymer

PV-CQ DC1500V PSE Certified Solar Wire Technical Data

Rated Voltage U DC 1500V
Test Voltage U No breakdown at 6.5KA (AC), 50Hz, 5min, 20 ±5 ℃/ 15KA (DC), 5min, 20 ±5 ℃
Bending Radius Fixed installation>4D; Occasional moved>5D
Rated Temperature -40℃ to 90℃
Max. conductor temperature: 125 ℃
Allowable short circuit temperature 200 ℃ in 5 seconds
Flame Test JIS C 3665-1-2(Whole wire)
High temp,humidity resistance JIS C 60068-2-78,JIS C 3660-1-1
UV Resistance JIS C 7350-1,2
Dynamic Penetration test JIS G 0203
Gas evolved during combustion JIS C 3666-2
Low temp impact JIS C 3660-1-4

PV-CQ DC1500V PSE Certified Solar Wire Specification

Cross
Section
Conductor
Construction
Conductor
Stranded OD.
Cable
OD.
Conductor Max.
Resistance at 20℃
Insulation
Resistance
(mm2) (n/mm) (mm) (mm) (Ω/km) MΩ.km
2 7/0.60 1.8 5.7 9.24 1000
3.5 7/0.80 2.4 6.3 5.2 1000
5.5 7/1.00 3 7.1 3.33 1000
8 7/1.20 3.6 7.8 2.31 1000

Options:
200m/roll or 250m/roll (As requested) Outer packing: 8 rolls/carton or 4 rolls/carton
