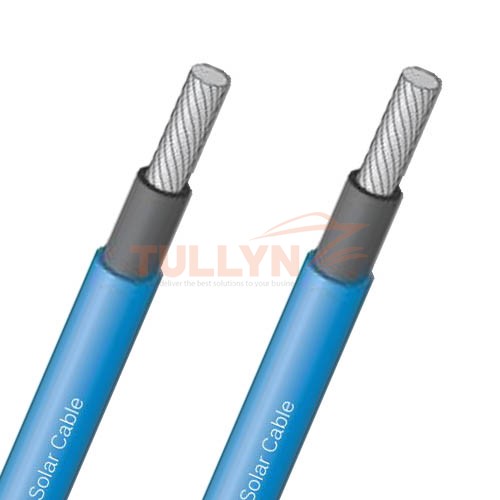

PV1500DC-F EBXL Photovoltaic Solar Cable

Application: PV1500DC-F is Suitable for the interconnection of the various elements of solar systems with rated voltage up to 1,5kV DC, for fixed installations outside and indoor, unprotected pipes, grounding wires.

Standards: 2 Pfg 1990/05.12

PV1500DC-F EBXL Photovoltaic Solar Cable Application

PV1500DC-F TÜV approved solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays.For free movable or fixed installation in photovoltaic installations. The cable may be used indoor, outdoor, in earth (please note the laying instruction), in explosion hazard areas in industry and agriculture. The cable is considered to short-circuit and earth-fault safe.

This PV1500DC-F cable is based on the TÜV specification 2 Pfg 1990/05.12. The new cable is, therefore, suitable for PV systems with an operating voltage of 1500V DC. The electron beam cross-linked quality of the cable series is guaranteed here, too. Also, the TÜV type PV1500DC-F has been certified in accordance with 2 Pfg 1990/05.12.

Being flame protected with a halogen-free fire retardant system with low smoke properties.these cables are designed for safety in case of fire.

PV1500DC-F EBXL Photovoltaic Solar Cable Construction

PV1500DC -F EBXL Photovoltaic Solar Cable Construction
Conductor material: Bare copper strands Class 5 to IEC 60228
Insulation: electronic beam cross-linked compound
Insulation: electronic beam cross-linked compound,Flame retardant

PV1500DC -F EBXL Photovoltaic Solar Cable Electric Performance

Rated Voltage U0/U DC1500V
Maximum Permitted DC Voltage 1.8 kV DC (conductor/conductor, non-earthed system, circuit not under load) 2 PfG 1990/05.12
Voltage Withstand AC 11KV    DC 15KV for 5 min

PV1500DC -F EBXL Photovoltaic Solar Cable Thermal Performance

Ambient Temperature fixed installation: -40 °C up to +120 °C (max. conductor temperature according to EN 60216-2)
Installation Temperature flexible: max. -25 °C
Short Circuit Temperature 200℃/5 sec
High-Temperature Pressure Test According to EN 60811-3-1
Damp-Heat Resistance According to EN 60068-2-78 with 85% humidity

PV1500DC -F EBXL Photovoltaic Solar Cable Mechanical Performance

Minimum Bending Radius 4×OD (fixed), 15×OD (flexing)
Dynamic Penetration According to 2 PfG 1990 Annex F
Notch Propagation According to 2 PfG 1990 Annex B
Anticipated Period Of Service 25 years

PV1500DC-F EBXL Photovoltaic Solar Cable Chemical&Fire Performance

Ozone Resistance According to EN 50396 part 8.1.3 Method B
Weathering- UV Resistance According to HD 605/A1
Acid & Alkaline Resistance According to EN 60811-2-1 (Oxal acid and sodium hydroxide)
Flame retardant According to IEC 60332-1, DIN EN 60332-1-2
Halogen-free According to EN 50267-2-1, IEC 60754-1

PV1500DC-F EBXL Photovoltaic Solar Cable Specification

No. of Cores  ×
Nominal Cross  Section
No. of
Stranding
Nominal Overall
Diameter
Current at
60℃
No. ×mm² mm A
1×1.5 30/0.25 5.2 30
1×2.5 49/0.25 5.65 41
1×4.0 52/0.30 6.1 55
1×6.0 84/0.30 6.8 70
1×10 84/0.40 8.2 98
1×16 128/0.40 9.3 132
1×25 192/0.40 10.8 176
1×35 276/0.40 12.9 218

Options:
200m/roll or 250m/roll (As requested) Outer packing: 8 rolls/carton or 4 rolls/carton
