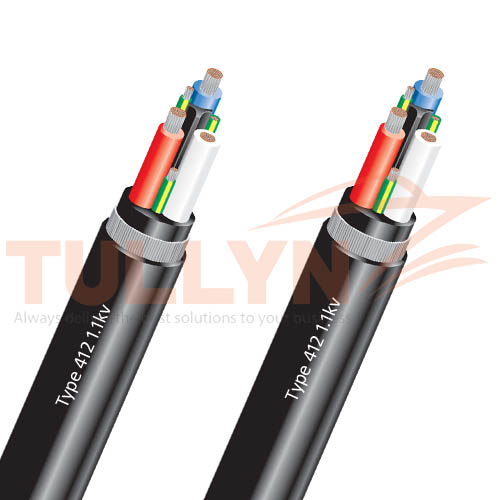

Type 412 Mine Armored Feeder Cable 1.1kv

Standard: AS/NZS 2802:2000
Application: Type 412 cable is used in applications where high impact resistance is required and damage is likely, such as feeder cable in sand mining operations etc.

Type 412 Mining Armored Feeder Cable 1.1kv

Type 412 Mining Armored Feeder Cable 1.1kv Application

These type 412 cables with green/yellow earth and pliable armor for mechanical protection may be used in applications where damage is likely and armor can reduce cases of costly downtime, suitable installed as feeder cables in sand mining operations.

This pliable armored cable used as a feeder in areas where high impact resistance is required. Not suitable for use in underground coal mining applications.

Type 412 Mining Armored Feeder Cable 1.1kv Standard

AS/NZS 1125,
AS/NZS 3808,
AS/NZS 2802,
AS/NZS 5000.1

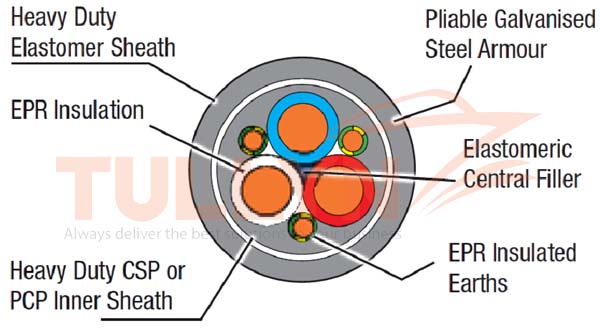

Type 412 Mining Armored Feeder Cable 1.1kv Construction

Type 412 Mining Armored Feeder Cable 1.1kv Construction

Type 412 Mining Armored Feeder Cable 1.1kv Construction

3×Conductors Flexible stranded tinned annealed copper conductor.
Insulation EPR.
Insulation Screen Semiconductive elastomer.
Filler Elastomer center filler.
3×Interstitial
Earth Conductor
EPR covered flexible stranded tinned copper conductor.
Inner Sheath PCP sheath. CPE/CSP sheath can be offered upon request.
Pliable Armour Galvanized low carbon (mild) steel strands.
Outer Sheath Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.

Type 412 Mining Armored Feeder Cable 1.1kv Technical Data

Voltage Rating   1.1kV
Operating Conductor Temperature   -25 to 90°C
Emergency Conductor Temperature   130°C
Short Circuit Conductor Temperature   Max. 250°C for 5 sec
Max. Working Tension   0.02kN/mm² (total)

Type 412 Mining Armored Feeder Cable 1.1kv Specification

Nominal
Conductor Area
Insulation
Thickness
Earth conductor
Thickness of Covering
Pliable
Armour Size
Nominal Overall
Diameter
Nominal
Weight
mm^2 mm mm^2 No/mm mm kg/100m
16 1.6 0.6 7/0.90 38.3 265
25 1.6 0.6 7/0.90 38.4 294
35 1.6 0.6 7/0.90 44.6 402
50 1.7 0.8 7/0.90 49.2 500
70 1.8 0.8 7/0.90 55.4 655
95 2 0.8 7/0.90 60.1 775
120 2.1 1 7/0.90 68.1 990
150 2.3 1 7/0.90 73.8 1186
185 2.5 1 7/0.90 80.2 1360
240 2.8 1.2 7/0.90 88.7 1670
300 3 1.2 7/1.25 100.9 2200

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
