Type C Hall Anchor

Material: Casting Steel
Weight: 40KGS to 46000KGS
Class Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS, and CCS
Application:  cargo ship, container ship, ore carrier or other large ships, mainly used as bower-anchor

Type C Hall Anchor

Type C Hall Anchor Introduction

Type C Hall Anchor has a cuboid shank, which is shorter than type A and type B hall anchor. The swing angle of this hall anchor is also smaller than type A and type B. This anchor is the most commonly used conventional shackles ship anchor. It is usually used as bower-anchor.

The surface treatment for the anchor could be Black bitumen paint, anti-rusting paint or customized.

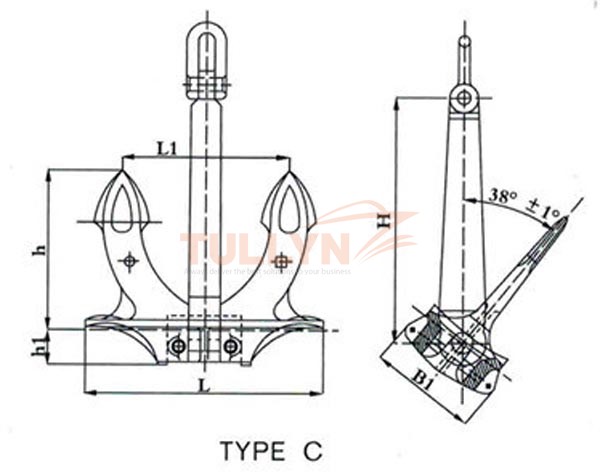

Type C Hall Anchor Drawing

Type C Hall Anchor Drawing

Type C Hall Anchor Drawing

Type C Hall Anchor Specification

Nominal Weight
(KG)
H
(mm)
h
(mm)
h1
(mm)
L
(mm)
L1
(mm)
B1
(mm)
40 430 303 67 430 303 198
480 995 700 154 1000 700 460
1140 1316 926 203 1319 926 605
3060 1970 1275 282q 1820 1275 836
500 2317 1510 332 2156 1510 992
6000 2422 1610 354 2290 1610 1056
7800 2644 1752 385 2493 1752 1152
9900 3863 1896 417 2699 1896 1248
11100 2975 1970 433 2803 1970 1297
13500 3176 2104 462 2992 2104 1384
16100 3368 2232 490 3173 2232 1468
20000 3617 2399 526 3411 2399 1578
31000 4188 2774 609 3949 2774 1822
46000 4777 3165 695 4505 3165 2078

Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
