W Series Single Level Cantilever Vortex Water Pump

Capacity: from 0.35-17 m3/h
Head: 5-150 m
Speed: 2900 r/min
Motor power: 0.75-18.5kw
Liquid temperature range: from -20℃ to 80℃

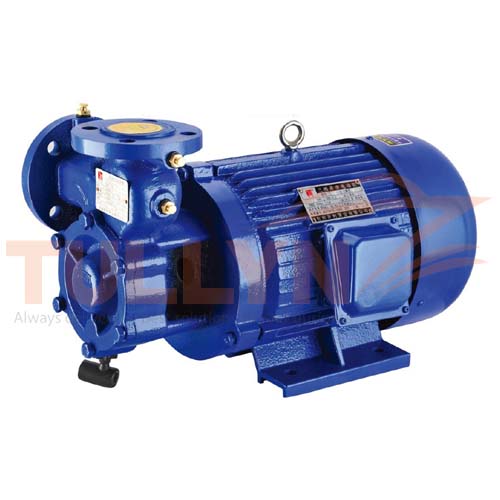

W Series Single Level Cantilever Vortex Water Pump

W Series Single Level Cantilever Vortex Water Pump Application

W Series Single Level Cantilever Vortex Water Pump is designed to be one stage cantilevered pump. It can be used for transporting the medium that the temperature is ranging from -20℃ to 80℃, and 5°E is the maximum viscosity, for the solid grain is not allowed to be contained in the medium as well.

This vortex pump is widely used in boiler, shipbuilding, spins, chemical industry, metallurgy, mechanical manufacture, aquaculture, fixed fire constant voltage, heat change unit, the agricultural long-distance spray irrigation.

The design of our vortex water pump is totally in accordance with the ISO standard, IMO standard, and kinds of Classification Society’s requirement. Therefore, ABS, DNV, CCS, NKK, LR, GL, BV, RINA are available for our products.

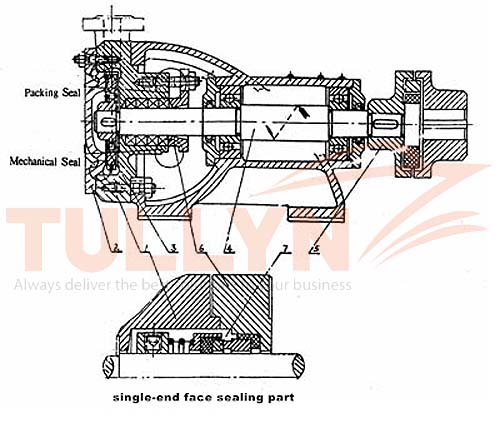

W Series Single Level Cantilever Vortex Water Pump Construction

W Series Single Level Cantilever Vortex Water Pump Construction

W Series Single Level Cantilever Vortex Water Pump Construction

W Series Single Level Cantilever Vortex Water Pump Specification

Model Voltage
(V)
Capacity
(m3/h)
Head
(m)
Speed
(r/min)
Suction
(m)
Power
(KW)
Efficiency
(%)
1/2W1.25-8 380 1.25 80 2900 3.5 0.75 21
3/4W1.44-10 380 1.44 100 2900 4 1.5 26
1W2.4-10.5 380 2.4 105 2900 3.5 3 28
1W2.5-12 380 2.5 120 2900 4.5 3 32
20W-20 380 0.72 20 2900 6.5 0.75 22
20W-65 380 0.72 65 2900 6 2.2 15
25W-25 380 1.44 25 2900 6 0.75 26
25W-70 380 1.44 70 2900 5.5 3 22
32W-30 380 2.88 30 2900 6 1.5 32
32W-75 380 2.88 75 2900 5 4 30
32W-120 380 3.88 120 2900 2 5.5 34
40W-40 380 5.4 40 2900 5 4 34
40W-90 380 5.4 90 2900 3.5 7.5 33
50W-45 380 9 45 2900 4 5.5 36
65W-50 380 14.4 50 2900 3.5 11 39

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
