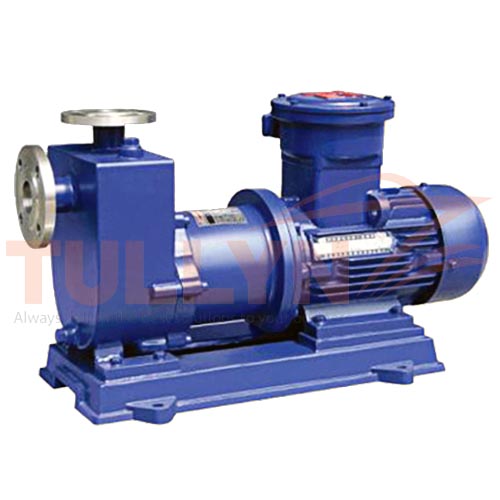

ZCQ Series Self-sucking Chemical Coupled Magnetic Pump

Suction ablity: 3min/4m(3min/9.8ft )
Maximum drive rating: 55KW(75HP)
Maximum caliber: 100mm(4inch)
Maximum discharge-side pressure: 0.8MPa(8bar)
Maximum head: 80m(262.4ft)
Flow rate range: 3-100m3/h(13.2-440US.GPM)

ZCQ Series Self-sucking Chemical Coupled Magnetic Pump

ZCQ Series Self-sucking Chemical Coupled Magnetic Pump Application

ZCQ Series Self-sucking Chemical Coupled Magnetic Pump is remodeled based on the series CQ magnetic pumps with the recent advanced technologies of the field. The products combine the advantages of the magnetic pumps such as fully sealing and corrosion resistance, and the features of self-priming pumps such as simple line structure without the bottom valve and easy operation without filling liquid for being primed.

ZCQ stainless steel magnet pump explosion proof motor non-leakage self-priming magnetic pump is fully sealed, non-leakage and corrosion resistant. This magnetic pump is compact in structure, with small volume, good corrosion resistance ability, low noise, reliable running performance and easy to maintain. The magnetic pump could be used to deliver acid, lye, oils, rare & precious liquid, venom, volatile liquid or works in circulating fluid equipment. Even wonderful to pump the liquid that is inflammable, explosive or volatile.

ZCQ Series Self-sucking Chemical Coupled Magnetic Pump is widely used in petroleum chemical industry, pharmacy, petroleum industry, plating, food industry, film processing, scientific researching and national defense industry, etc.

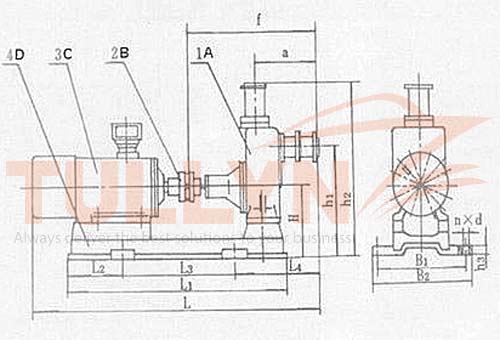

ZCQ Series Self-sucking Chemical Coupled Magnetic Pump Drawing

ZCQ Series Self-sucking Chemical Coupled Magnetic Pump Drawing

ZCQ Series Self-sucking Chemical Coupled Magnetic Pump Drawing

ZCQ Series Self-sucking Chemical Coupled Magnetic Pump Specification

Model Caliber(mm) Capacity Head Suction Motor power Speed Voltage
Inlet Outlet (m3/h) (m) (m) (kw) (rpm) (v)
ZCQ20-15-100 20 15 3 12 4 0.37 2900 220/380
ZCQ25-20-115 25 20 6.6 15 4 1.1 2900 380
ZCQ32-25-115 32 25 6.6 15 4 1.1 2900 380
ZCQ32-25-145 32 25 6.6 25 4 1.1 2900 380
ZCQ40-32-132 40 32 10.8 20 4 2.2 2900 380
ZCQ40-32-160 40 32 12 32 4 4 2900 380
ZCQ50-40-145 50 40 14.4 25 4 4 2900 380
ZCQ50-40-160 50 40 13.2 32 4 4 2900 380
ZCQ65-50-145 65 50 16.8 25 4 5.5 2900 380
ZCQ65-50-160 65 50 27 32 4 7.5 2900 380
ZCQ80-65-125 80 65 51 20 4 7.5 2900 380
ZCQ80-65-160 80 65 51 32 4 15 2900 380
ZCQ80-50-200 80 65 51 50 4 22 2900 380
ZCQ80-50-250 80 50 51 80 4 37 2900 380
ZCQ100-80-160 100 80 100 32 4 22 2900 380
ZCQ100-65-200 100 65 100 50 4 37 2900 380
ZCQ100-65-250 100 65 100 80 4 55 2900 380

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
