20FT Heated Tank Container

Capacity: 10.9KL–35KL
Type: 20ft heated tank
Designed Temp:-40°C ~+300°C
Certificate: CSC/IMO
Application: 20ft heated tank container is suitable for expensive cargo’s to be safely transported on long journeys across the country by land or long journey’s sea.

Description

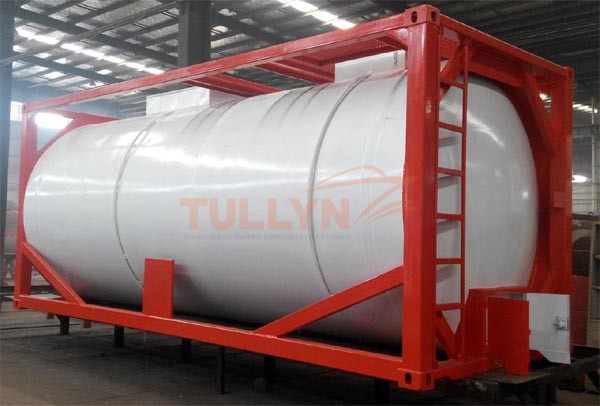

20FT Heated Tank Container

20FT Heated Tank Container Application

The 20FT heated Tank Container is designed to safely transport sensitive, non-hazardous heated or warm cargo. These tanks are suitable for expensive cargo’s to be safely transported on long journeys across the country by land or long journey’s sea.

High viscosity cargo and solid cargo at ordinary temperature can be smoothly handled by heating up and lowering the flow point. Products stored or transported by these containers vary from non-hazardous and hazardous chemicals. These units are specially designed for repeat use in the transportation of bulk liquid product to, from and between fixed and/or mobile consumption points.

This 20ft ISO heated Tank Containers are approved by international statutory authorities for the safe transportation of various hazardous and non-hazardous chemicals, pharmaceuticals, food products.

"<yoastmark

20FT heated Tank Container Standard Specification

Tank Type 20’ ISO full-frame collar tank, Type UN T11 Portable Tank, insulated, fitted with the Eltherm electrical heating system.
Frame Dimensions 20’ x 8’ x 8’6”
Capacity 24,000 Litres +/- 1%
M.G.W. 36,000 kg
Tare (est.) 4,000 kg +/- 3%
Max Payload 32,200 kg
Working Pressure 4 Bar
Test Pressure 6 Bar
Design Temp -40℃ to +130℃
Vessel Material SANS 50028-7 WNr 1.4402/1.4404 (C<0.03%), equivalent to 316L stainless steel Shell: Cold Rolled 2B finish Ends: polished internally to 1.2 Micron CLA
Min. Calculated Thickness 4.18 mm
Corrosion Allowance 0.20 mm
Manufacturing Thickness 4.50 mm nominal
Frame Material GB/T 1591-Q345D or SPA-H (or equivalent)
Frame to Shell 304 stainless steel
Corner castings ISO 1161 – 8 off
Vessel Design Code ASME VIII Div 1 where applicable

Please note that the above specifications are “general specifications” that pertain to the majority of the tank containers in our production. These specifications should only be used for general, informational purposes.
