Diesel tank container

Material: Q345D, 16MnDR
Requirement:IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID
Approval:BV, LR, CCS.
T-Code: T4
Application:Diesel UN1202, and Kerosene oil products transporation

Description

Diesel tank container

Diesel tank container Introduction

The Diesel tank container has an ISO 20ft tank container frame, usually has a bulk loading capacity of 26,000-litre.

Diesel Tank Containers are approved by international statutory authorities for the safe transportation of Diesel UN1202, and Kerosene oil products.

(upon request customer colors and logo systems)

The diesel tank containers are separated for two purposes: tank containers for diesel storage, deep-sea shipping and rail transportation.

All the tank units are of the highest quality design and construction and conform strictly to the latest international approvals.

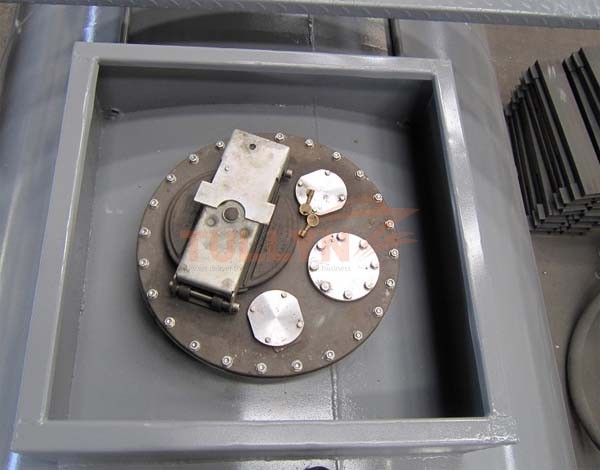

Diesel tank container

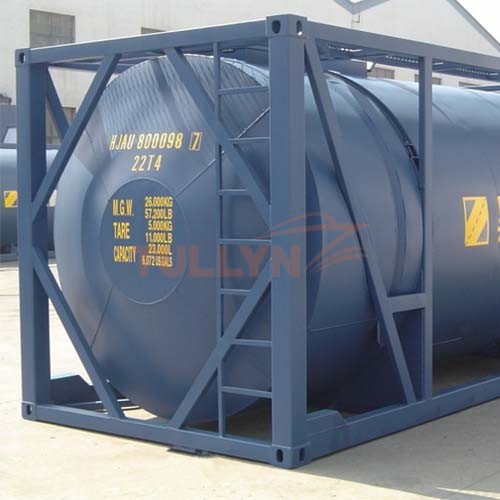

Diesel tank container

Diesel tank container Specification:

Tank Type 20’ ISO full-frame collar tank, Type UN Portable Tank T4

No insulation, no steam heating, top side rails fitted

Frame Dimensions 20’ x 8’ x 8’6”
Capacity 26,000 Litres +/- 2%
M.G.W. 36,000 kg
Tare (est.) 3,600 kgs +/- 3%
Max Payload 32,400 kgs
Working Pressure 1.76 Bar
Test Pressure 2.65 Bar
Design Temp -40°C to +130°C
Vessel Material ASTM 240 304, Hot Rolled
Shell Thickness 5mm nominal
Ends Thickness(B.F) 6mm nominal
Corrosion Allowance 0.2 mm
Frame Material GB/T 1591-Q345D
Frame to Shell 304 stainless steel
Corner castings ISO 1161 – 8 off
Vessel Design Code ASME VIII Div 1
Radiography Shell
Ends
ASME Spot
ASME Full
Inspection Agency LR or BV
Cargo carried See dangerous cargo lists for UN Portable T4 tank
Design Approvals IMDG T4, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT

Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
