20ft ISO Coal Powder Tank Container

Capacity: 22,500L
Working Pressure: 2.2Bar;
Certificate: CCS/LR/BV
Design Code: ASME VIII Div 1
Design Approvals: IMDG T3, ADR/RID, CSC, TIR, ISO, UIC, US/UK DOT

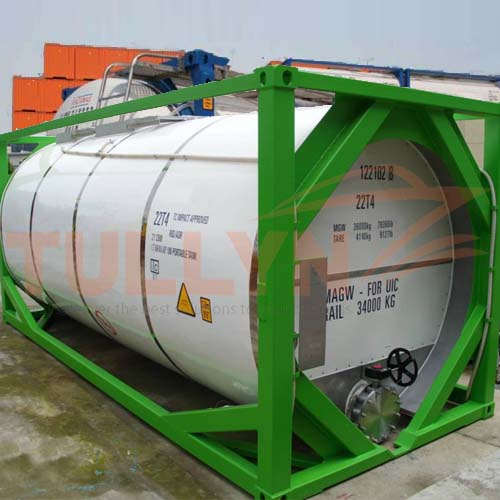

20ft ISO Coal Powder Tank Container

20ft ISO Coal Powder Tank Container Introduction

The 20ft ISO Coal Powder Tank Container is designed to comply with the requirements of IMDG Code, aiming at transportation and stock coal powder on the road, rail, ship, trailer, etc. This Coal Powder Tank is made of carbon steel or stainless steel.


Max Cargo Temperature: +80 degree Celsius

Certificate: CSC certificate like GL/LR/BV/ABS

All tanks are of the highest quality design and construction and conform strictly to the latest international approvals.

20ft ISO Coal Powder Tank Container Specification

Tank Type 20’ ISO full-frame universal collar tank
Frame Dimensions 20’ x 8’ x 8’6”
Capacity 22500 LTR
Maximum Gross Weight 32000 KG
Tare 4200 KG
Working Pressure 2.2 bar
Test Pressure 3.3 bar
Steam Working Pressure 4.0 bar
Relief Valve Set Pressure 2.2 bar / -0.21 bar/vac
Ambient Temp. Range -19°C up to +80°C
Maximum Cargo Temp 80°C
Shell Material Stainless steel, ASTM A240 316 / 316L low carbon <0.03% DIN 17441 w1.4401. Cold rolled shell 2B finish. Thickness nominal 4.2mm shell +0.1 corrosion allowance, 4.65 ends, and equivalent 6mm mild steel in accordance with regulations.
Design Code / Approvals ASME, section VIII, division 1 where applicable and TIR, C.S.C., ISO/TC – 104, ISO668, ISO6346, ISO830, ISO1496/3(Edt1995), ISO1161, CCS. (China Classification Society)

Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
