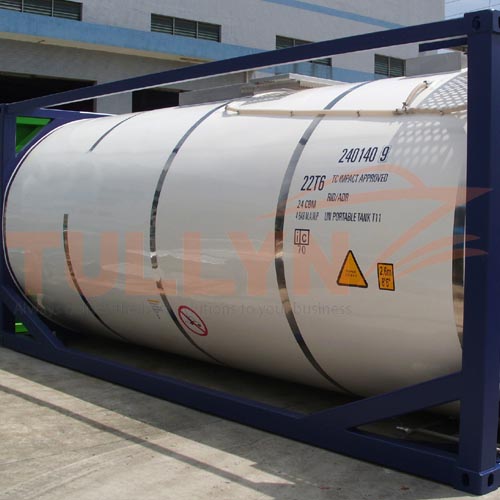

20ft T11 Low Height Frame Tank Container

Capacity: 11,000L
Working Pressure: 4Bar;
Certificate; CCS/LR/BV
Design Code: ASME VIII Div 1
Design Approvals: IMDG T3, ADR/RID, CSC, TIR, ISO, UIC, US/UK DOT

20ft T11 Low Height Frame Tank Container

20ft T11 Low Height Frame Tank Container Introduction

The 20ft T11 Low Height Frame Tank Container is designed to comply with the requirements of IMDG Code, aiming at transportation of liquid on the road, rail, ship, trailer, etc. This Low Height Frank Tank is made of stainless steel with PU and Rock wool insulation where applicable.


Max Cargo Temperature: +130 degree Celsius

Certificate: CSC certificate like GL/LR/BV/ABS

Capacity Option: 12,000 liters  13,000 liters  14,000 liters

All tanks are of the highest quality design and construction and conform strictly to the latest international approvals.

20ft T11 Low Height Frame Tank Container Specification

Tank Type 20’ ISO full-frame universal collar tank, Type UN T11 portable, Top rails fitted.
Frame Dimensions 19’ x 8’ x 7”
Designed Capacity 11,000 Litres +/- 2%
M.G.W. 24,000 kg
Tare (est.) 3,230 kgs
Working Pressure 4 Bar
Test Pressure 6 Bar
Max External Pressure 0.41 bar
Steam Work Pressure 4 bar
Steam Test Pressure 6 bar
Ambient Temperature -40 ℃ to +65 ℃
Max Cargo Temperature 130 ℃
Vessel Material 316L or equivalent
Manlid 500mm diameter hinged 8 point manlid
Relief Valve 1 *2 ‘A” pressure only valve set at 4.4 bar
Airline 38mm(1 ‘A”) ball valve with BSP screw thread and cap
Top outlet 80mm(3″) flanged butterfly valve terminating in a flanged connecting and captive blind flange.
Top fill 50mm hole on manlid connect to a 2ft blind flange
Walkway 475mm marine grade aluminum Q grating
Insulation&Cladding 50mm Rockwool + PU
Vessel Design Code ASME VIII Div 1
Radiography Shell                                      ASME Spot
Dished ends                          ASME Full
Inspection Agency Lloyds Register or BV
Design Approvals IMDG T14, CFR 49, ADR/RID, CSC, TIR, ISO, US DOT

Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
