Bitumen tank container

Material: Q345D, 16MnDR
Requirement:IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID
Approval:BV, LR, CCS.
Application:Bitumen transporation

Description

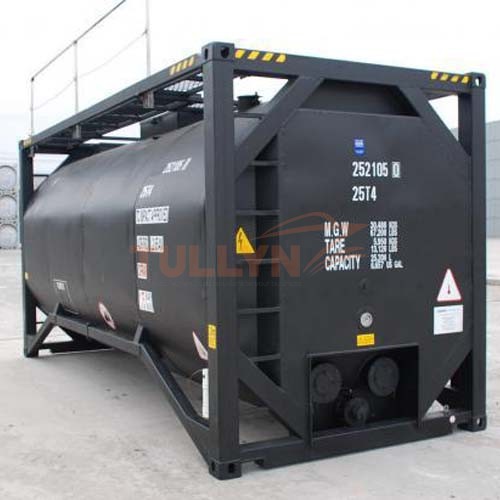

Bitumen tank container

Bitumen tank container Introduction

The bitumen tank container is a 20 ft ISO carbon steel container with a capacity range between 24.000 and 29.000 liters. These market-leading bitumen containers are double skinned and heavily insulated, as well as being fitted with a proven high-efficiency heating tube layout for optimum heat transfer during the heat up operation. These tanks are available with either direct fire burner, thermal oil, or electric heating systems to suit the operator requirements.

We can supply 25,000-litre ISO bulk bitumen tank containers. Our bitumen tank is separated for four purposes: tank containers for bitumen storage, short-sea, deep-sea shipping and rail transportation.

All tanks are of the highest quality design and construction and conform strictly to the latest international approvals.

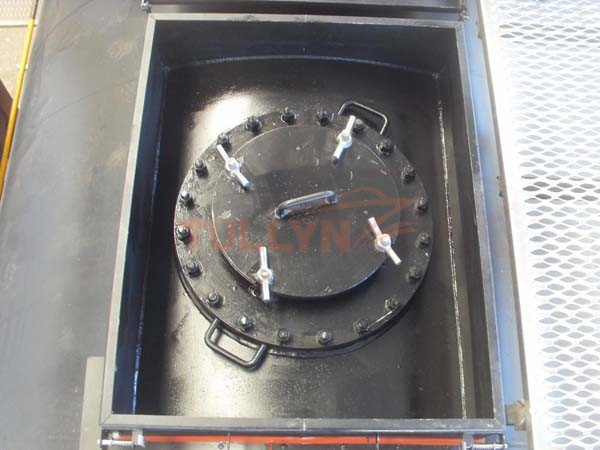

Bitumen tank container top

Bitumen tank container top

Bitumen tank container Specification:

Tank Type 20’ ISO full-frame collar tank, Type UN T3 portable, insulated Bitumen tank, top side rails fitted
Frame Dimensions 20’ x 8’ x 8’6”
Capacity 20000 Litres +/- 2%
M.G.W. c
Tare (est.) 6700 kgs
Max Payload 23,780 kgs
Working Pressure 1.76 Bar
Test Pressure 2.65 Bar
Allowable Vacuum 0.21 Bar
Design Temp -20°C to +170°C
Vessel Material 16MnDR
Shell Thickness 6 mm
Ends Thickness 6 mm after forming
Corrosion Allowance 1 mm (Max.)
Frame Material GB/T 1591-94-Q345D
Frame to Shell Q345D
Corner castings ISO 1161 – 8 off
Vessel Design Code: ASME VIII Div 1
Radiography Shell
Dished ends
ASME Spot
ASME Full
Inspection Agency LR, BV or CCS
Cargo carried Bitumen
Design Approvals IMDG T3, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US/UK DOT

Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
