20ft T50 ISO Propane Tank Container

Capacity: 24m3
Working Pressure: 18Bar;
Certificate; CCS/LR/DNV
Design Code: ASME VIII Div 1
Design Approvals: IMDG T3, ADR/RID, CSC, TIR, ISO, UIC, US/UK DOT

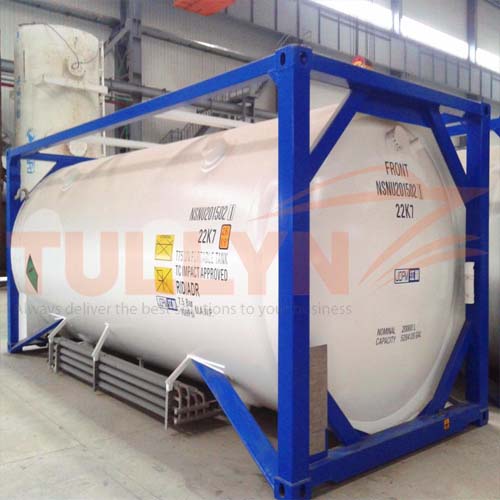

20ft T50 ISO Propane Tank Container

20ft T50 ISO Propane Tank Container Application

The 20ft T50 ISO Propane Tank Container is mainly applied to storage and transport Butane. The tanks comply with the standards of ASME and GB150. Equipment character: maximum volume in China and self-lighter.

The Propane tank container is a 20 ft ISO carbon steel container with a capacity range between 24.000 and 29.000 liters. These 20ft T50 Propane tank Containers are approved by international statutory authorities for the safe transportation of Freon, liquefied petroleum gas, propylene, liquid ammonia, dimethyl ether and methanol, butadiene, isobutane, epoxyethane, methylamine in different properties such as low pressure liquefied gas under normal temperature.

Our Propane tank is separated for four purposes: tank containers for freon storage, short-sea, deep-sea shipping and rail transportation.

All tanks are of the highest quality design and construction and conform strictly to the latest international approvals.

20ft T50 ISO Propane Tank Container Specification

Frame 20′ x 8′ x 8’6″
Nominal water capacity 24,700 Ltr (+/- 1% tolerance)
Max. gross weight 36,000 kg
Stacking 192,000 kg
MAWP. Acc UN: 18 Bar (g)
MAWP. Acc. US-DOT: 16.4 Bar (g)
MITI Test Pressure: 30.06 Bar(g)
Test Pressure (periodic): 23.45 Bar (g)
External Pressure: 1.0 Bar(g)
Design Temperature: -40 / +55 °C
Material Shell and Heads: SA612N
Flanges SA350LF2
Tare weight (nominal) 6360 kg (with baffles) (+/- 3% tolerance)
Carried Products LPG + Propane + Butane+ Class 2 within specified pressure and which are suitable for tank inside surface.
Characteristics with sun shield, equipped for bottom discharge, approved for the transport of gases by road, rail and sea.
Design code ASME VIII Div. 2 with ASME U2-Stamp
Regulations RID, ADR, IMDG T 50, US DOT CFR49 with a special permit
ISO 1496/3, UIC 592-2, CSC and TC TIR/CCC, AAR600
Design approval Lloyds Register or BUREAU VERITAS
Inspection & Certification Lloyds Register or BUREAU VERITAS

Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
