20ft Tank Container

Capacity: 10.9KL–26KL
T-Code: T3–T22
Designed Temp:-40°C ~+130°C
Standards: ASME VIII Div 1
Application: 20ft tank container fleet is separated for four transportation purposes: tank containers for liquid chemical products, tank containers exclusively for liquid foodstuff and tank containers for bitumen and fuel liquid products.

Description

20ft Tank Container

20ft Tank Container Application

tank container or tanktainer is an intermodal container for the transport of liquids, gases and powders as bulk cargo.

ISO tank container is designed for the transportation of cryogenic liquids such as liquid oxygen, nitrogen, liquid argon, liquefied natural gas (LNG) and liquid carbon dioxide, worldwide shipping, rail and road transport shipping container.

Product specifications ISO 40 and 20ft, the maximum allowable working pressure of 0.2 to 3.7MPa, vacuum multilayer winding insulation, liner materials austenitic stainless steel, pressure vessels according to Chinese standards, the European Union EN, TPED1999/36/EC, Australia/New Zealand AS1210 criteria such as design and manufacturing.

Some hazardous materials must be transported in tank containers with no in- or outlet openings below the surface of the liquid.

Tank containers are generally designed for an operating pressure of up to 3 bar (above atmospheric). The test pressure used is 4.5 bar (above atmospheric).

If the cargo requires temperature-controlled transport, tank containers can be equipped with insulation or heating. The temperature of the cargo may be precisely controlled using temperature sensors.

All tanks are of the highest quality design and construction and conform strictly to the latest international approvals.

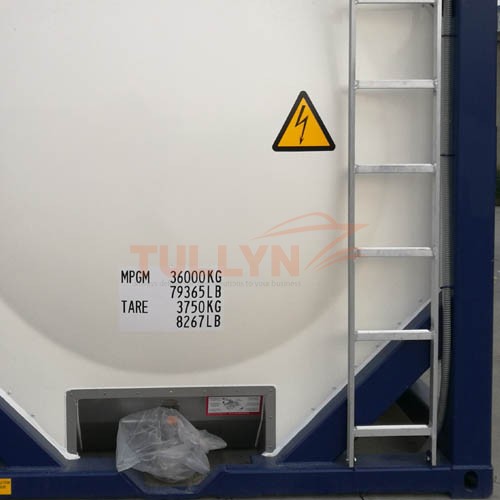

20ft tank container

20ft tank container

Standard ISO Tank Container Specifications

Capacity (nominal) 21,000 litre 24,000 litre 25,000 litre 26,000 litre (baffle)
Design Type UN PT / Hybrid UN PT / Hybrid UN PT / Hybrid UN PT / Hybrid
Discharge Outlet Bottom Bottom Bottom Bottom
Max. Gross Weight 36,000 kg 36,000 kg 36,000 kg 36,000 kg
Tare Weight 3,650 kg 3,900 kg 3,730 kg 4,060 kg
Max. Payload 32,350 kg 32,100 kg 32,270 kg 31,940 kg
Test Pressure 6.00 Bar 6.00 Bar 6.00 Bar 6.00 Bar
Working Pressure 4.00 Bar 4.00 Bar 4.00 Bar 4.00 Bar
Max. Cargo Temp. 120°C 120°C 130°C 130°C
Steam Heating Coil 8 m² 8 m² 8 m² 8 m²
Baffles N/A N/A N/A Yes x 3

Please note that the above specifications are “general specifications” that pertain to the majority of the tank containers in our production. These specifications should only be used for general, informational purposes.
