CQB Series High-Temperature Teflon Lined Magnetic Pump
CQB Series High-Temperature Teflon Lined Magnetic Pump Application
CQB Series High-Temperature Teflon Lined Magnetic Pump is constituted by an electrical motor, magnetic coupling, and corrosion-resistant centrifugal pump. Its main characteristic is the use of magnetic coupling transmission of driving force, there is no leakage, when the motor-driven magnetic coupling outside of the rotating magnet, the magnetic line of force through the gap and isolation kits, acting on inside the magnet, so that pump rotor and motor synchronous rotation No mechanical contacts to transfer torque. The driving force in the shaft input, as the liquid has been closed every other kit in the static, no dynamic seal and therefore there is no leakage.
CQB Series High-Temperature Teflon Lined Magnetic Pump flow components can be used in accordance with the needs of 304,304 L, 302,321,316,316 L, UB6, CD4MCu, titanium alloys, nickel-based alloy materials, such as decay. CQB Series High-Temperature Teflon Lined Magnetic Pump is national joint design team to develop a new type of completely non-leakage anti-corrosion pump.
CQB Series High-Temperature Teflon Lined Magnetic Pump is widely used in petroleum, chemical, pharmaceutical, metallurgy, electroplating, environmental protection, food, film laboratory, water treatment, defense and other industries. It is the ideal equipment for transporting flammable, explosive, volatile, toxic, rare and precious liquid and a variety of corrosive liquids.
CQB Series High-Temperature Teflon Lined Magnetic Pump Drawing

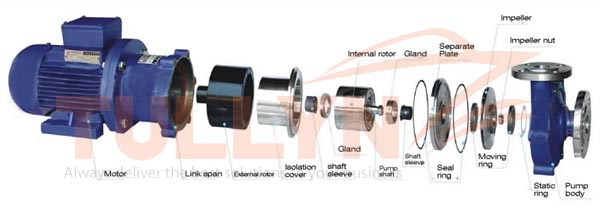

CQB Series High-Temperature Teflon Lined Magnetic Pump Construction
CQB Series High-Temperature Teflon Lined Magnetic Pump Specification
| Model | Inlet Dia. | Outlet Dia. | Head | Capacity | NPSH | Power | Speed | Efficiency | Voltage |
| (mm) | (mm) | (m) | (m3/h) | (m) | (kw) | (r/min) | (%) | (v) | |
| CQB15-10-85F | 15 | 10 | 8 | 1.8 | 6 | 0.12 | 2800 | 33 | 220/380 |
| CQB20-15-105F | 20 | 15 | 12 | 3 | 6 | 0.37 | 2900 | 33 | 220/380 |
| CQB32-25-125F | 32 | 25 | 20 | 3.2 | 5 | 0.75 | 2900 | 35 | 380 |
| CQB40-32-115F | 40 | 32 | 15 | 6.3 | 6 | 0.75 | 2900 | 45 | 380 |
| CQB40-32-145F | 40 | 32 | 25 | 6.3 | 5 | 1.5 | 2900 | 42 | 380 |
| CQB50-40-125F | 50 | 40 | 20 | 12.5 | 3.5 | 2.2 | 2900 | 50 | 380 |
| CQB50-40-160F | 50 | 40 | 32 | 12.5 | 3.5 | 3 | 2900 | 46 | 380 |
| CQB65-50-125F | 65 | 50 | 20 | 25 | 4 | 3 | 2900 | 58 | 380 |
| CQB65-50-160F | 65 | 50 | 32 | 25 | 4 | 5.5 | 2900 | 56 | 380 |
| CQB80-65-125F | 80 | 65 | 20 | 50 | 4 | 7.5 | 2900 | 66 | 380 |
| CQB80-65-160F | 80 | 65 | 32 | 50 | 4 | 11 | 2900 | 64 | 380 |
| CQB100-80-125F | 100 | 80 | 20 | 100 | 4 | 11 | 2900 | 72 | 380 |
| CQB100-80-160F | 100 | 80 | 32 | 100 | 4 | 18.5 | 2900 | 70 | 380 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
