MPYCY-SLA IS Shipboard Signal Cable

Standard: JIS C3410-2010
Material: Cu/EPR/PVC/Al foil/PVC/Steel Wire/PVC
Certificate: ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS
Application:  MPYCY-SLA shipboard control and signal cable are used for fixed installation lighting & control in both explosion risk and safe areas, general purposes.

MPYCY-SLA Individual Shielded Shipboard Signal Cable

MPYCY-SLA Individual Shielded Shipboard Signal Cable Application

The MPYCY-SLA Shipboard cable is intended for power circuit up to 250V, Lighting & Control circuit,also for fixed installation lighting & control in both explosion risk and safe areas, general purposes.

STANDARD APPLIED
Design guideline : JIS C 3410 (2010)
Material properties :
JIS C 3410 Insulation, EPR JIS C 3410 Sheath, PVC
Flame retardant :
IEC 60332-1
IEC 60332-3, Cat. A, ‘FA–’ type only
– Any other cable marking can be applicable, when purchaser required

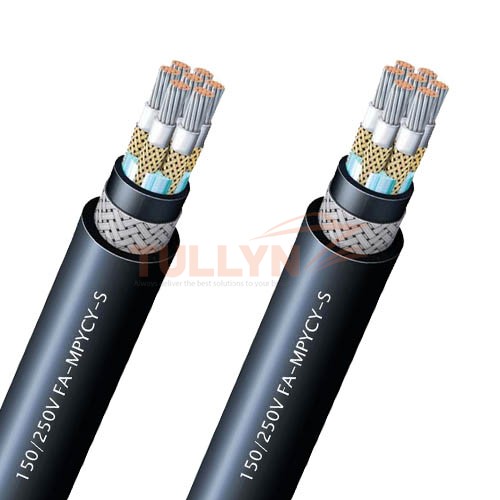

MPYCY-SLA(MPYCY-S) Individual Shielded Shipboard Control Cable Construction

Conductor M Tinned annealed stranded copper, class 2 according to IEC 60228
Insulation P 85°C EPR as per JIS C 3401
  Cabling Insulated conductors shall be cabled.
Flame retardant & non-hygroscopic fillers may be used
Overall shield -SLA Individual Shielded, Aluminum-foil+drain wire
Bedding Y PVC as per JIS C 3401
Armor C Galvanized steel wire braid
Sheath Y PVC as per JIS C 3401

MPYCY-SLA Individual Shielded Shipboard Control Cable Technical Data

Conductor cross-section 1mm²
Conductor diameter 1.3mm
Diameter over armour 1.0mm
Average insulation thickness 0.7mm
Rated Voltage Uo/U (Um) 150 / 250 V
Max. DC resistance of the conductor at 20°C 18.2Ohm/km
Test voltage 1500V

MPYCY-SLA IS Shipboard Control Cable Specification

MPYC-SLA, FA-MPYC-SLA

No. of cores Conductor Nominal overall diam. Tolerance of diam. Cable weight(Approx.)
Size Construction O.D
No. SQ No./mm mm mm ± mm kg/km
2 1 7/0.43 1.29 11.2 0.4 210
4 1 7/0.43 1.29 12.9 0.5 300
7 1 7/0.43 1.29 15.2 0.6 435
12 1 7/0.43 1.29 19.5 0.8 685
19 1 7/0.43 1.29 22.8 0.9 980
27 1 7/0.43 1.29 27.3 1.1 1360
37 1 7/0.43 1.29 30.5 1.2 1760
44 1 7/0.43 1.29 35 1.4 2240

MPYCY-SLA, FA-MPYCY-SLA

No. of cores Conductor Nominal overall diam. Tolerance of diam. Cable weight(Approx.)
Size Construction O.D
No. SQ No./mm mm mm ± mm kg/km
2 1 7/0.43 1.29 13.2 0.5 260
4 1 7/0.43 1.29 14.9 0.6 360
7 1 7/0.43 1.29 17.4 0.7 515
12 1 7/0.43 1.29 21.9 0.9 795
19 1 7/0.43 1.29 25.4 1 1120
27 1 7/0.43 1.29 30.1 1.2 1540
37 1 7/0.43 1.29 33.5 1.3 1970
44 1 7/0.43 1.29 38.4 1.5 2500

DISCLAIMER: Please note that the above specifications are “general specifications” that pertain to the majority of our production. Specifications and technical details should only be used for general, informational purposes only. For the actual specification, please check with us when order placed.
