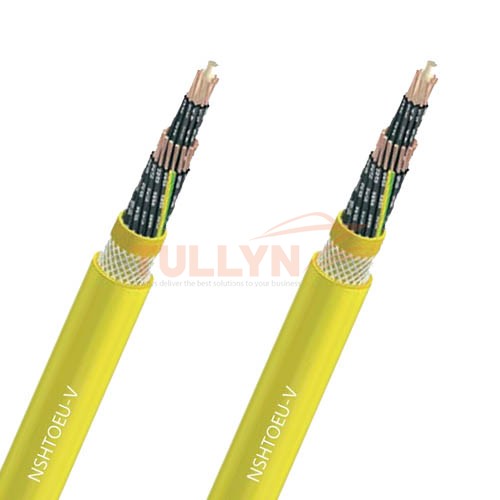

NSHTOEU-V EPR PCP Low Voltage Vertical Reeling Cable
NSHTOEU-V EPR PCP Low Voltage Vertical Reeling Cable Application
NSHTOEU-V EPR PCP Low Voltage Vertical Reeling Cable is mainly be used as a connection cable for reeling purposes for very high mechanical loads on movable appliances, mobile line carriers, cable carriages as well as for vertical drum operation. It is also applicable to the scope of DIN VDE 0168 and 0118, for underground and open-cast mines.
NSHTOEU-V EPR PCP Low Voltage Vertical Reeling Cable is a robust and all weather resistant cable also found in rough mining operations, flexible handling equipment and in railway motors. These cables are suitable for outdoor installations in dry, damp or wet places. Ozone and UV resistant.
A flexible reeling cable for very high stresses and vertical reeling operation (spreader application) ideal for mining, ports inside and out and other applications where movement and reeling are required.
NSHTOEU-V EPR PCP Low Voltage Vertical Reeling Cable Construction
| Conductor: | Class 5 or 6 – flexible tinned copper, According to VDE 0295 |
| Earth Conductor: | Green/yellow |
| Core Insulation: | Rubber |
| Shield | Braid screen made of tinned copper wires,at least 60%: for shielded cores,at least 80%: for twisted pairs |
| Cores: | Laid up in a maximum of 3 layers |
| Core Marking: | Up to 5 cores: color coded in accordance to VDE 0293,7 cores and over: black with printed consecutive number coding |
| Support element | Central Aramide support element to increase the loading capability, the kN value designates the breaking load of the support element |
| Outer Sheath: | – PROTOFIRM: inner sheath high-grade special compound based on PCP, color: yellow – Anti-torsion braid Reinforced braid made of polyester threads, in a vulcanized bond between the sheath.Resulting in a high strength of the sheath system. – PROTOFIRM special: outer sheath high-grade special compound with the best performance against abrasion and top tear resistant characteristics; based on PCP, color: yellow |
NSHTOEU-V EPR PCP Low Voltage Vertical Reeling Cable Technical Data
| Nominal voltage | Uo/U:0.6/1 kV |
| Maximum operating voltage in AC systems | Um:1.2KV |
| Maximum operating voltage in DC systems | Vm:1.8KV |
| Test voltage: | |
| – Power | 2.5 kV in AC |
| – Control | 2.0 kV in AC |
| Current rating (A) | according to DIN VDE 0298 part 4, |
| Max. temperature at the conductor : | |
| – in service | + 90 °C |
| – under short-circuit conditions | + 200 °C |
| Max. surface temperature : | |
| – fixed installation | – 45 °C up to + 80 °C |
| – mobile operation | – 35 °C up to + 80 °C |
NSHTOEU-V EPR PCP Low Voltage Vertical Reeling Cable Specification
| No. of Core and Nominal Cross Section | Main conductor Diam.(mm) | Min Overall Diam or cable(mm) | Max.Overall Diam of Cable(mm) | Approx net weight (kg/km) | Max. permissible tensile load(N) |
| CORDAFLEX (SMK)V (N)SHTOEU control cables | |||||
| 49×1 (20kN) | 1.3 | 26.6 | 29.6 | 1260 | 3200 |
| 24×2,5 (20kN) | 2 | 26.2 | 29.2 | 1340 | 3600 |
| 30×2,5 (20kN) | 2 | 29.4 | 32.4 | 1680 | 4100 |
| 44×2,5 (20kN) | 2 | 34.1 | 37.1 | 2280 | 5100 |
| 56×2,5 (20kN) | 2 | 40.1 | 43.1 | 3030 | 6000 |
| CORDAFLEX (SMK)V (N)SHTOEU composite control cables | |||||
| 42×12 AWG+3LWL(20 kN) | 2 | 38.7 | 41.7 | 2940 | 4950 |
| 45×2,5+(4×0,5)C | 2 | 42.9 | 45.9 | 2830 | 5175 |
Options:
- Further numbers of cores and cross-section upon request
- Integrated BUS system cable
- Integrated Optical Fiber Elements
- Special cold resistant compound.
- Photographs are not to scale and do not represent detailed images of the respective products.
Please noted:
1)Packing in drums or roll, or by customer request.
2)Festoon application it is not recommended to have a cross-section beyond 3×50²!
3)regular delivery time is about 25 working days.for some type cable, delivery time can be expedited within 10~15 working days.
The above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes.All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
