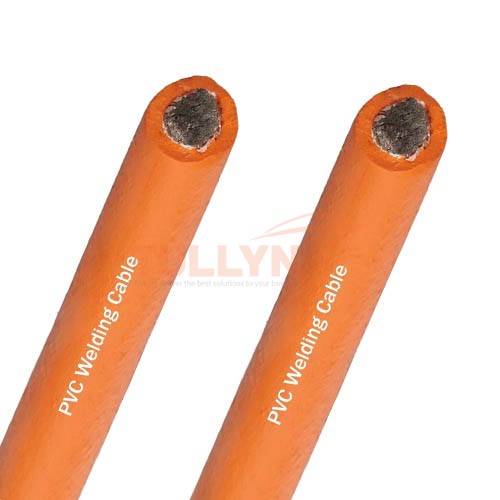

PVC Welding Cable
PVC Welding Cable Application
PVC welding cable can be used for the transmission of high currents from the electric welding machine to the welding tool. It is suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, shipbuilding, for manually and automatically operated line and spot welding machines.
The PVC welding cable retains high flexibility even under influence of ozone, light, oxygen, protective gases, oil, and petrol. Robust cable structure of these cables makes them resistant to low and high temperature, fire, ozone and radiation, oils, acids, fats, and petrol. These cables are also ideal for outside installation in dry, moist and wet areas.
Easy to use inside visible or embedded piping. Direct burial installation or outdoors in wet environments as well as contact with hot parts is not allowed. It must not be subject to thermic radiation.
PVC welding cable is used as leading wire for welding machine and also applied to power or electrical household appliances and a variety of electrical devices and tools with rated voltage Uo / U 100/100V.
PVC Welding Cable Construction
| Conductor: | Flexible Bare annealed copper wire Class 5 VDE0295/IEC 60228 |
| Insulation | PVC |
| Outer Sheath: | PVC, Outer Sheath Color: black blue red orange white |
PVC Welding Cable Technical Data
| Rated Voltage: | 100V (450V for non-welding applications if suitably protected from mechanical damage). |
| Temperature Range: | The long-time permissible working temperature of the cable is not more than 65. |
| Bending Radius: | 6 x Ø |
PVC Welding Cable Specification
| Cable Size | Strands Number | Stands Size | Average OD (mm) | Max.Conductor Resistance at 20℃ |
Norminal Weight | |
| mm² | mm | Min. | Max. | ≤Ω/km | kg/km | |
| 16 | 513 | 0.2 | 9.0 | 11.5 | 1.210 | 240 |
| 25 | 798 | 0.2 | 10.5 | 13.0 | 0.780 | 350 |
| 35 | 1121 | 0.2 | 11.5 | 14.5 | 0.554 | 450 |
| 50 | 1596 | 0.2 | 13.5 | 17.0 | 0.386 | 625 |
| 70 | 2220 | 0.2 | 15.5 | 19.5 | 0.272 | 825 |
| 95 | 3034 | 0.2 | 17.0 | 22.0 | 0.206 | 1125 |
| 120 | 1702 | 0.2 | 19.0 | 24.0 | 0.161 | 1380 |
Options:
100m/roll or 200m/roll (As requested) Outer packing: 8 rolls/carton or 4 rolls/carton
Photographs are not to scale and do not represent detailed images of the respective products.
