NSSHCGEOEU Longwall Coal Cutter Cable

Material: Cu/EPR/Rubber/PCP
Voltage: 0.6/1kv
APPLICATION: NSSHCGEOEU cable is used for the connection of mobile machines, predominantly in mining applications,e.g. for coal-cutting machines, suitable for extreme bending loads under low tensile stress.

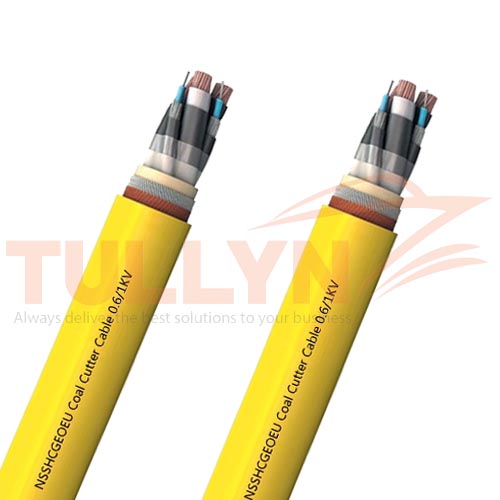

NSSHCGEOEU Longwall Coal Cutter Cable(Low Tensile Stress)0.6/1KV

NSSHCGEOEU Coal Cutter Cable 0.6/1KV Application

NSSHCGEOEU Coal Cutter Cables are used for the connection of mobile machines under extremely high mechanical loads, predominantly in mining situations,e.g. for coal-cutting machines, suitable for extreme bending loads under low tensile stress.

The phase-concentric monitoring shield and the common concentric earth conductor, in conjunction with appropriate monitoring equipment, make it possible to monitor the cable for insulation faults and damage resulting from external influences. The cable can be delivered with 2, 3 or 6 pilot cores.

These NSSHCGEOEU cables comply with DIN VDE 0250 part 812 Standards.

NSSHCGEOEU Low Tensile Stress Coal Cutter Cable 0.6/1KV Construction

Conductors Flexible stranded tinned copper conductor.
Insulation Heat resistant 3GI3 rubber based on EPR.
Outer Conductor Layer Easy strippable outer conductive layer.
Pilot Cores Copper strand and steel braid conductor capable of expansion and compression with EPR rubber insulation.
Monitoring Conductor Spiral of tinned copper wires above the pilot cores, covered with a semi-conductive tape.
Inner Sheath Rubber type GM1b.
Armor/Earth Conductor Concentric earth conductor as the spiral of copper and steel wires, fiberglass tape, embedded in the outer sheath which prevents sheath exchanging.
Outer Sheath Rubber type 5GM5, abrasion, and tear resistant, oil resistant and flame retardant.

NSSHCGEOEU Low Tensile Stress Coal Cutter Cable 0.6/1KV Technical Data

Rated Voltage Uo/U (Um) 0.6/1 kV
Max. conductor temperature in service 90°C
Max. short-circuit temperature of conductor: 200°C
Limit surface temperature fixed installed -40°C~ 80°C
Limit surface temperature, flexible application -25°C ~ 80°C
Oil-resistance Yes
Flame retardant Yes
Dynamic bending radius 4(xD)
Static bending radius 1.5(xD)

NSSHCGEOEU Low Tensile Stress Coal Cutter Cable 0.6/1KV Specifications

Number of Cores×
Nominal Cross Section
Minimum
Overall Diameter
Maximum
Overall Diameter
Nominal
Weight
No.×mm² mm mm kg/km
3×16/16KON+2ST+UEL 35 38 2130
3×25/16KON+2ST+UEL 38 41 2790
3×35/16KON+2ST+UEL 41 45 3390
3×50/25KON+2ST+UEL 47 51 4340
3×70/35KON+2ST+UEL 52 56 5680
3×95/50KON+2ST+UEL 58 62 7180
3×25/16KON+3×(1.5ST+UEL) 38 41 2920
3×35/16KON+3×(1.5ST+UEL) 41 45 3630
3×50/25KON+3×(1.5ST+UEL) 45 48 4500
3×70/35KON+3×(1.5ST+UEL) 48 53 5850
3×95/50KON+3×(1.5ST+UEL) 52 56 7400
3×120/70KON+3×(1.5ST+UEL) 58 63 8300
3×150/70KON+3×(1.5ST+UEL) 62 68 9300

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
