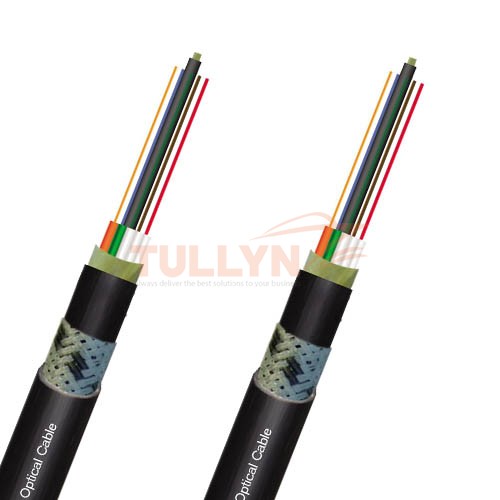

OPTOFLEX Flexible Fibre Optic Cable for Reeling and Festoon System
OPTOFLEX Flexible Fibre Optic Cable Application
OPTOFLEX flexible fibre optic cable for signal and data transmission on cranes and material handling equipment. Ideal for cable handling systems, such as reels, festoon systems, cable tenders, etc. at high data rates, large bandwidth and absolute immunity to electromagnetic interference, suitable for forced guidance (e.g. reels, festoon systems, cable tenders) at high data rates, large bandwidth and absolute immunity to electromagnetic interference
The cable meets the standards and approvals for FDDI, ISO/IEC 9314 Part 3, DIN VDE 0888 and MSHASC 1891.
Reeling and Festoon System Flexible Fibre Optic Cable Construction
| Fibre optics | Fibre core diameter: 62.5µm, 50µm or 9 µm Diameter across the cladding: 125 µm Diameter over the coating: 250 µm |
| Fibre covering | Hollow core with filling compound, basic material ETFE Compound 7YI 1 natural color |
| Identification of the fibres | Specially developed color code for identification of the individual fibres |
| Core arrangement | Six cores, especially laid up in one layer around a GFK supporting element (GFK=glass fibre reinforced plastic) |
| Inner sheath | Special compound, wall thickness 0.8 mm |
| Braid | Special braid made of polyester threads Surface covered: approx. 80% |
| Outer sheath | Basic material PCP, rubber compound 5GM3 Colour black, wall thickness 2.6 mm |
Reeling and Festoon System Flexible Fibre Optic Cable Technical Data
| Transmission data of the fibre optics | Graded index fibre | Graded index fibre | Graded index fibre |
| 50/125 | 62.5/125 | E9/125 | |
| Max. attenuation at wavelength 850 nm | 2.8 dB/km | 3.3 dB/km | – |
| Max. attenuation at wavelength 1300 nm | 0.8 dB/km | 0.9 dB/km | 0.4 dB/km |
| Max. attenuation at wavelength 1550 nm | – | – | 0.3 dB/ km |
| Bandwidth at 850 nm | > 400 MHz | > 400 MHz | |
| Bandwidth at 1300 nm | > 1200 MHz | > 600 MHz | |
| Numerical aperture | 0.200 +/ 0.200 | 0.275+/0.02 | 0.14+/0.02 |
| Chromatic dispersion at 1300nm | – | – | <3.5 ps/nm km |
| Chromatic dispersion at 1550nm | – | – | <3.5 ps/nm km |
| Ambient temperature | – Fully flexible operation:-35°C to +80°C – Fixed installation:-40°C to +80°C |
||
OPTOFLEX Reeling and Festoon System Flexible Fibre Optic Cable Specification
| Number of cores and nominal dimensions | Overall dimensions of cable Min. value | Overall dimensions of cable Max. value | Approx. net weight | Maximum permissible tensile force |
| mm | mm | kg/km | N | |
| OPTOFLEX | ||||
| 6G62.5/125 Micron | 14.9 | 16.9 | 280 | 500 |
| 6G50/125 Micron | 14.9 | 16.9 | 280 | 500 |
| 6E9/125 Micron | 14.9 | 16.9 | 280 | 500 |
| 12G62.5/125 Micron | 14.9 | 16.9 | 280 | 500 |
| 12G50/125 Micron | 14,9 | 16.9 | 280 | 500 |
| 12E9/125 Micron | 14.9 | 16.9 | 280 | 500 |
| 18G50/125 Micron | 14.9 | 16.9 | 280 | 500 |
| 18G62.5/125 Micron | 14.9 | 16.9 | 280 | 500 |
| 18E9/125 Micron | 14.9 | 16.9 | 280 | 500 |
| Special design OPTOFLEX (M) only for fixed installation | ||||
| 6G62.5/125 Micron | 8.5 | 10 | 100 | 2000 |
| 6G50/125 Micron | 8.5 | 10 | 100 | 2000 |
| 6E9/125 Micron | 8.5 | 10 | 100 | 2000 |
| 12G62.5/125 Micron | 8.5 | 10 | 100 | 2000 |
| 12G50/125 Micron | 8.5 | 10 | 100 | 2000 |
| 12E9/125 Micron | 8.5 | 10 | 100 | 2000 |
| 18G62,5/125 Micron | 8.5 | 10 | 100 | 2000 |
| 18G50/125 Micron | 8.5 | 10 | 100 | 2000 |
| 18E9/125 Micron | 8.5 | 10 | 100 | 2000 |
DISCLAIMER: Please note that the above specifications are “general specifications” that pertain to the majority of our production. Specifications and technical details should only be used for general, informational purposes only. For the actual specification, please check with us when order placed.
