P5/P12 BFOU FR Mud Resistant Cable 0.6/1kv

Material: Cu/Mica Tape+EPR(XLPE)/SHF2/TCWB/SHF Mud
Voltage: 0.6/1KV
APPLICATION: These P5/P12 BFOU Fire Resistant Mud Resistant 0.6/1KV Offshore Cables are fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for fixed installation for power, control, and lighting applications.

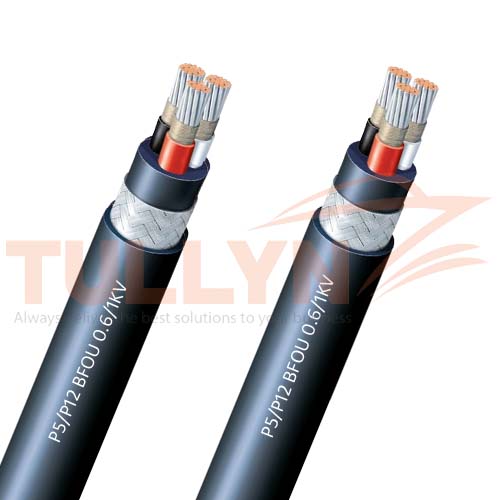

P5/P12 BFOU Fire Resistant Mud Resistant Cable 0.6/1kv

P5/P12 BFOU Fire Resistant Mud Resistant Cable 0.6/1kv Application

P5/P12 BFOU Fire Resistant Mud Resistant Cable 0.6/1kv is fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for control, power and lighting systems.

These P5/P12 BFOU 0.6/1KV cables are intended for fixed installation for power and control and lighting applications with a rated voltage of 0.6/1KV. These cables can be installed on drilling ships, drilling platforms ( jack up, semi-submersible), Production Platforms ( TLP, semi-submersible, SPAR, fixed platforms) and FPSO/FSO.

P5/P12 BFOU Fire Resistant Mud Resistant Cable 0.6/1kv Standards

Design IEC60092-353
Conductor IEC60228
Insulation IEC60092-351
sheathed IEC60092-359
Flame Retardant IEC 60332-1,IEC60332-3-22
Fire Resistant IEC 60331
Smoke Density IEC61034

P5/P12 BFOU Fire Resistant Mud Resistant Cable 0.6/1kv Construction

Classification Code Construction details
Conductor Tinned Annealed Stranded Copper Wire
Insulation B Mica Tape+EP Rubber/XLPE
Filler Water blocking fillers, if required
Bedding Halogen free compound, PETP wrapping tape will be applied over the bedding, if required
Inner Sheath F Halogen free thermosetting compound
Armor O Tinned Copper wire braided
Outer Sheath U Mud Resistant, Halogen-free Thermosetting compound SHF Mud

P5/P12 BFOU Fire Resistant Mud Resistant Cable 0.6/1kv Electrical Characteristics

Nominal Cross Section Area mm² 1.5 2.5 4 6 10 16 25 35 50
Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4 5.1 6.5 7.4 8.7
Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529 0.391
Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157 196
Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133 167
Continuous Current Rating@45℃3&4 Core A 16 21 28 36 50 67 89 110 137
Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010 7150
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
Nominal Cross Section Area mm² 70 95 120 150 185 240 300 400 630
Nominal Conductor Diameter mm 10.3 12.2 13.8 15.1 17.0 19.6 21.9 24.6 32.5
Maximum DC Resistant@20℃ Ω/km 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607 0.0475 0.0286
Continuous Current Rating@45℃1 Core A 242 293 339 389 444 522 601 690 890
Continuous Current Rating@45℃2 Core A 206 249 288 331 444 444 511 587 757
Continuous Current Rating@45℃3&4 Core A 169 205 237 272 311 365 421 483 623
Short Circuit Current 1s A 10020 13590 17170 21460 26470 34340 42930 57230 90140
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1

Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.

Ambient Temperature Correction Factors

Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

P5/P12 BFOU Fire Resistant Mud Resistant Cable 0.6/1kv Specification

Construction
No. of cores×Cross section
Nominal
Insulation
Thickness
Nominal
Inner Sheath
Thickness
Nominal
Outer Sheath
Thickness
Nominal
Overall
Diameter
Nominal
Weight
(mm²) mm mm mm mm kg/km
1×1.5 1 1.1 1.1 9.3 145
1×2.5 1 1.1 1.1 9.7 160
1×4 1 1.1 1.1 10.4 220
1×6 1 1.1 1.1 10.9 250
1×10 1 1.1 1.2 12.7 310
1×16 1 1.1 1.2 13.9 390
1×25 1.2 1.1 1.3 16.3 585
1×35 1.2 1.1 1.3 17.2 690
1×50 1.4 1.1 1.4 19 890
1×70 1.4 1.1 1.4 20.6 1110
1×95 1.6 1.1 1.5 23.1 1440
1×120 1.6 1.2 1.6 25 1735
1×150 1.8 1.2 1.7 27 2060
1×185 2 1.2 1.7 29.4 2545
1×240 2.2 1.2 1.8 32.6 3170
1×300 2.4 1.2 1.9 35.3 3910
1×400 2.4 1.4 2.1 41 5100
1×630 2.8 1.4 2.3 48.5 7660
2×1.5 1 1.1 1.2 14.2 310
2×2.5 1 1.1 1.3 15.1 360
2×4 1 1.1 1.3 16.6 470
2×6 1 1.1 1.4 17.9 555
2×10 1 1.1 1.4 19.9 705
2×16 1 1.1 1.5 22.5 985
2×25 1.2 1.2 1.6 26.4 1360
2×35 1.2 1.2 1.7 28.4 1620
2×50 1.4 1.2 1.9 32.4 2290
2×70 1.4 1.2 2.1 38 3260
2×95 1.6 1.2 2.3 41.6 3910
2×120 1.6 1.4 2.4 45.3 4710
2×150 1.8 1.4 2.6 49.7 5670
2×185 2 1.4 2.7 54.3 6840
2×240 2.2 1.6 3 61.5 8790
2×300 2.4 1.6 3.2 67.8 10630
3×1.5 1 1.1 1.3 14.8 345
3×2.5 1 1.1 1.3 16.2 445
3×4 1 1.1 1.3 17.4 530
3×6 1 1.1 1.4 18.7 635
3×10 1 1.1 1.5 21.1 830
3×16 1 1.1 1.5 23.7 1160
3×25 1.2 1.2 1.7 28.1 1640
3×35 1.2 1.2 1.8 30.2 1980
3×50 1.4 1.2 2 34.3 2750
3×70 1.4 1.2 2.2 39 3675
3×95 1.6 1.4 2.4 44.7 4955
3×120 1.6 1.4 2.5 48.3 6035
3×150 1.8 1.4 2.7 53.2 7355
3×185 2 1.6 2.9 59.5 9025
3×240 2.2 1.6 3.2 66.5 11590
3×300 2.4 1.8 3.4 72.6 13740
4×1.5 1 1.1 1.3 16.4 400
4×2.5 1 1.1 1.3 17.3 505
4×4 1 1.1 1.4 18.8 620
4×6 1 1.1 1.4 20.1 750
4×10 1 1.1 1.5 22.7 985
4×16 1 1.2 1.6 25.9 1400
4×25 1.2 1.2 1.8 30.7 1995
4×35 1.2 1.2 1.9 33.1 2440
4×50 1.4 1.4 2 38.2 3430
4×70 1.4 1.4 2.2 42.7 4600
4×95 1.6 1.6 2.4 49.4 6135
4×120 1.6 1.6 2.5 53.6 7515
4×150 1.8 1.6 2.9 59 9010
4×185 2 1.6 3.1 64.7 11000
4×240 2.2 1.8 3.4 73.1 14160
4×300 2.4 1.8 3.7 80.7 17550
5×1.5 1 1.1 1.4 17.7 510
6×1.5 1 1.1 1.4 19 545
7×1.5 1 1.1 1.4 19 590
8×1.5 1 1.1 1.5 21.8 715
9×1.5 1 1.1 1.6 23.3 720
10×1.5 1 1.1 1.6 23.6 790
12×1.5 1 1.2 1.6 24.3 880
14×1.5 1 1.2 1.7 25.5 965
16×1.5 1 1.2 1.7 26.7 1035
19×1.5 1 1.2 1.7 27.4 1185
20×1.5 1 1.2 1.8 29.5 1260
23×1.5 1 1.2 1.9 31.8 1435
24×1.5 1 1.2 2 33.2 1510
27×1.5 1 1.2 2 33.9 1615
30×1.5 1 1.2 2 34.9 1735
32×1.5 1 1.4 2 35.5 1800
33×1.5 1 1.4 2 36.7 1940
37×1.5 1 1.4 2 38 2090
44×1.5 1 1.4 2.3 42.6 2460
5×2.5 1 1.1 1.4 18.8 595
6×2.5 1 1.1 1.4 20.4 650
7×2.5 1 1.1 1.4 20.4 700
8×2.5 1 1.1 1.5 23.5 790
9×2.5 1 1.1 1.6 25.1 860
10×2.5 1 1.1 1.6 25.4 955
12×2.5 1 1.2 1.6 26.1 1045
14×2.5 1 1.2 1.7 27.3 1160
16×2.5 1 1.2 1.8 28.8 1265
19×2.5 1 1.2 1.8 29.6 1445
20×2.5 1 1.2 1.9 31.8 1545
23×2.5 1 1.4 2 34.7 1805
24×2.5 1 1.4 2 35.8 1850
27×2.5 1 1.4 2 35.4 1970
30×2.5 1 1.4 2.1 38.1 2235
33×2.5 1 1.4 2.2 39.6 2390
37×2.5 1 1.4 2.3 41.2 2610
44×2.5 1 1.4 2.4 46.2 3075

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
