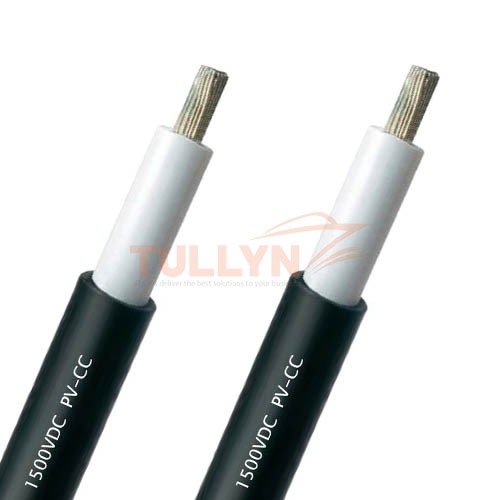

PV-CC DC1500V JCS 4517 Solar Wire

Application: PV-CC DC1500V Wire may be used in DC rated voltage below 1500V(DC) solar power system, between the solar panel module & junction box and junction box & power controller.

Standards: JCS 4517

PV-CC DC1500V JCS 4517 Solar Wire

PV-CC DC1500V JCS 4517 Solar Wire Application

These PV-CC cables have superior environmental performance in terms of weather, heat and cold resistance, and are best suited for cabling in solar power generation systems. This cable is sunlight, ozone, UV, and moisture resistant. Photovoltaic Wire (PV Wire) may be used as wiring for solar panels, as the interconnection wiring of grounded and ungrounded photovoltaic power systems.

Electron-beam cross-linked compounds; UV, ozone and hydrolysis resistant; High temperature resistant, the materials do not melt or flow; Good cold flexibility; Very long service life>25 years at 90℃; Compatible to all popular connectors

PV-CC DC1500V JCS 4517 Solar Wire Construction

PV-CC DC1500V JCS 4517 Solar Wire Construction
Conductor material: Bare/Tinned copper wire strands
Insulation: XLPE compound Comply with RoHS
Insulation: XLPE compound,Flame retardant,Comply with RoHS,Color:Black

PV-CC DC1500V JCS 4517 Solar Wire Technical Data

Rated Voltage U DC 1500V
Test Voltage U No breakdown at 6.5KA (AC), 50Hz, 5min, 20 ±5 ℃/ 15KA (DC), 5min, 20 ±5 ℃
Bending Radius Fixed installation>4D; Occasional moved>5D
Rated Temperature -40℃ to 90℃
Max. conductor temperature: 125 ℃
Allowable short circuit temperature 200 ℃ in 5 seconds
Flame Test JIS C 3665-1-2(Whole wire)
Relative Permittivity UL854
High temp,humidity resistance JIS C 60068-2-78,JIS C 3660-1-1
UV Resistance JIS C 7350-1,2
Dynamic Penetration test JIS G 0203
Gas evolved during combustion JIS C 3666-2
Low temp impact JIS C 3660-1-4

PV-CC DC1500V JCS 4517 Solar Wire Specification

Stranded OD.
Conductor Max.
Resistance  at 20℃
(mm2) (n/mm) (mm) (mm) (Ω/km) MΩ.km
2 7/0.60 1.8 5.7 9.24 1000
3.5 7/0.80 2.4 6.3 5.2 1000
5.5 7/1.00 3 7.1 3.33 1000
8 7/1.20 3.6 7.8 2.31 1000

200m/roll or 250m/roll (As requested) Outer packing: 8 rolls/carton or 4 rolls/carton
