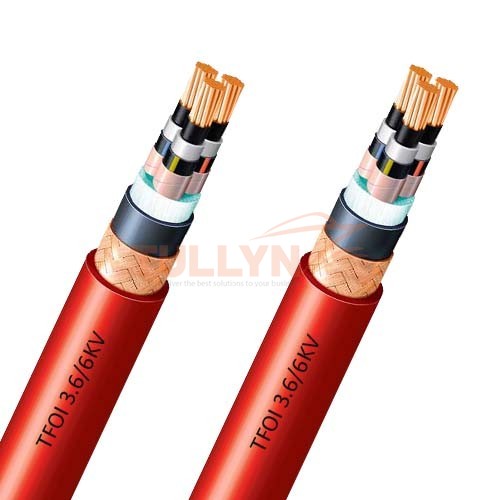

TICI High Voltage Marine Power Cable
TICI High Voltage Marine Power Cable Application
TICI HV Marine Power cables are an armored cable for fixed installation in ships where cable protection is required. The TICI cable has medium Voltage power distribution. TICI cable can be installed and operated both indoors and outdoors. This cable has an operating temperature of 90°C and the operating voltage could be 3.6/6KV, 6/10KV, 8.7/15KV,12/20KV.
Cable Designation:
3.6/6kV TICI, 6/10kV TICI, 8.7/15kV TICI, 12/20KV TICI
Standard:
Design Guide: IEC 60092-350 and IEC 60092-353
Insulation material: IEC 60092-351, XLPE Sheath material: IEC 60092-359, SHF1
Flame retardant: IEC60332-1 and IEC 60332-3 Category A
Halogen content: IEC60754-1, 0.5%↓ Smoke emission: IEC 61034, 60%↑
TICI High Voltage Marine Power Cable Construction
| Classification | Code | Construction detail |
| Conductor | Stranded plain annealed copper wires as per IEC 60228, Class 2 | |
| Conductor screen | Semi-conducting layer (tape / compound) | |
| Insulation | T | XLPE as per IEC 60092-351 |
| Insulation screen | – Non-metallic part : Semi-conducting layer (tape / compound) – Metallic part: Copper tape with about 0.1mm thickness – A suitable separator tape(s) may be applied over the metallic part |
|
| Cabling | – Three metallic wrapped conductors shall be cabled – Flame retardant & non-hygroscopic fillers may be used – Suitable tape(s) may be applied on the cabled core – A Filler may be applied to obtain a circular Cable |
|
| Inner covering | I | – SHF1 as per IEC 60092-359 |
| Armor | C | – Braid of steel wire – Coverage density: Min. 90% |
| Sheath | I | – SHF1 as per IEC 60092-359 – Sheath color: Red |
| Core identification | Colored tape shall be inserted under the metallic screen 3C: Red, Yellow, Blue |
TICI High Voltage Marine Power Cable Specification
TICI 3.6/6KV Technical Data
| No. ofCores xNominal Conductor Area |
Max. Conductor Dia. |
Nominal OD |
Tolerance | Max. Conductor Resistance (at 20°C) |
Cable Weight |
| mm2 | mm | mm | mm | /km | kg/km |
| 1×10 | 4.2 | 19.2 | 0.9 | 1.83 | 560 |
| 1×16 | 5.3 | 20.1 | 0.9 | 1.15 | 650 |
| 1×25 | 6.6 | 21.8 | 1 | 0.727 | 800 |
| 1×35 | 7.9 | 23.0 | 1 | 0.524 | 940 |
| 1×50 | 9.1 | 24.7 | 1 | 0.387 | 1,120 |
| 1×70 | 11 | 26.7 | 1.1 | 0.268 | 1,390 |
| 1×95 | 12.9 | 28.8 | 1.2 | 0.193 | 1,720 |
| 1×120 | 14.5 | 30.6 | 1.2 | 0.153 | 2,020 |
| 1×150 | 16.2 | 32.4 | 1.3 | 0.124 | 2,350 |
| 1×185 | 18 | 34.4 | 1.3 | 0.0991 | 2,780 |
| 1×240 | 20.6 | 38.4 | 1.4 | 0.0754 | 3,580 |
| 1×300 | 23.1 | 41.6 | 1.5 | 0.0601 | 4,310 |
| 1×400 | 26.1 | 45.8 | 1.7 | 0.047 | 5,440 |
| 1×500 | 29.2 | 49.3 | 1.8 | 0.0366 | 6,450 |
| 1×630 | 33.2 | 54.1 | 1.9 | 0.0283 | 8,110 |
| 3X10 | 4.2 | 36.3 | 1.4 | 1.83 | 1,710 |
| 3X16 | 5.3 | 38.8 | 1.5 | 1.15 | 2,030 |
| 3X25 | 6.6 | 42.0 | 1.5 | 0.727 | 2,500 |
| 3X35 | 7.9 | 44.8 | 1.6 | 0.524 | 2,950 |
| 3X50 | 9.1 | 48.0 | 1.7 | 0.387 | 3,510 |
| 3X70 | 11 | 52.5 | 1.9 | 0.268 | 4,420 |
| 3X95 | 12.9 | 57.0 | 2 | 0.193 | 5,470 |
| 3X120 | 14.5 | 61.0 | 2.1 | 0.153 | 6,480 |
| 3X150 | 16.2 | 64.9 | 2.2 | 0.124 | 7,540 |
| 3X185 | 18 | 69.3 | 2.3 | 0.0991 | 8,940 |
| 3X240 | 20.6 | 76.4 | 2.6 | 0.0754 | 11,180 |
Please Note:
More Specifications, please check with our sales.
Photographs are not to scale and do not represent detailed images of the respective products. The above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
