Type 210 Mining Power Feeder Cable 1.1KV

Standard:AS/NZS 1802:2003
Application: mainly used for hand-held boring machines and as a flexible lead to other equipment where heavy-duty service is required.

Type 210 Mining Power Feeder Cable 1.1KV

Type 210 Mining Power Feeder Cable 1.1KV Application

This Type 210 cable is primarily used for handheld equipment such as drills and boring machines, occasionally acting as a flexible lead to other equipment where heavy duty service is required. Note, certain regulatory authorities limit the use of this cable to 250/250 V.

This cable could also be suitable for use in underground coal mining applications.

Type 210 Mining Power Feeder Cable 1.1KV Standard

AS/NZS 1125,
AS/NZS 3808,
AS/NZS 1802,
AS/NZS 5000.1

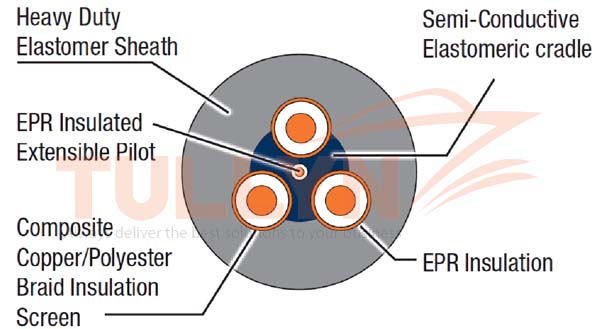

Type 210 Mining Power Feeder Cable 1.1KV Construction

Type 210 Mining Power Feeder Cable 1.1KV Construction

Type 210 Mining Power Feeder Cable 1.1KV Construction

3×Conductors  Flexible stranded tinned annealed copper conductor.
Conductor Screen  1.1/1.1kV – polyester barrier tape,
Insulation  EPR.
Insulation Screen  Semiconductive tape.
Composite Screen (earth conductor) Tinned annealed copper braiding interwove with polyester yarn.
Cradle Separator  Semiconductive PCP.
1×Central Extensible Pilot EPR covered flexible stranded tinned copper conductor.
Sheath  Heavy duty PCP sheath.

Type 210 Mining Power Feeder Cable 1.1KV Technical Data

Voltage Rating   1.1kV
Operating Conductor Temperature   -25 to 90°C
Emergency Conductor Temperature   130°C
Short Circuit Conductor Temperature   Max. 250°C for 5 sec
Max. Working Tension   0.02kN/mm² (total)

Type 210 Mining Power Feeder Cable 1.1KV Specification

Nominal
Conductor Area
Insulation
Thickness
Core screen
Area of Screen
Pilot Conductor
Thickness of Covering
Thickness of
Sheath
Nominal
Overall
Diameter
Nominal
Weight
mm2 mm mm2 mm mm mm kg/100m
1.5 1.4 5.2 0.8 3 23.7 83
2.5 1.5 5.8 0.8 3 25.1 92

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
