Type 260 Mine Armored Cable 1.1 to 11kv

Standard:AS/NZS 1802:2003
Application: These type 260 armored cables can also be used as feeder cables for to machinery and i.e. transportable mining substation (sand mining) where mechanical protection and strength is required.

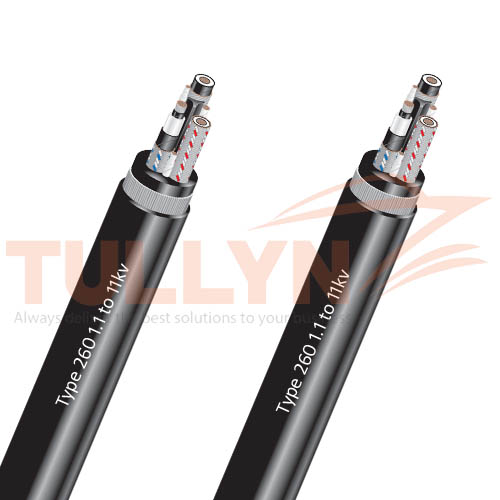

Type 260 Mining Armored Cable 1.1 to 11kv

Type 260 Mining Armored Cable 1.1 to 11kv Application

Type 260 cable is Copper screened and pliable armored cable for use as supply cable where mechanical protection and strength is required. May be used as a feeder cable to machinery and sand mining operations. Cable has 3 large pilots. This cable is used as a feeder in areas where high impact resistance is required. Suitable for use in underground coal mining applications.

These armored cables can also be used as feeder cables for to machinery and i.e. transportable mining substation (sand mining) where mechanical protection and strength is required.

Type 260 Mining Armored Cable 1.1 to 11kv Standard

AS/NZS 1125,
AS/NZS 3808,
AS/NZS 1802,
AS/NZS 5000.1

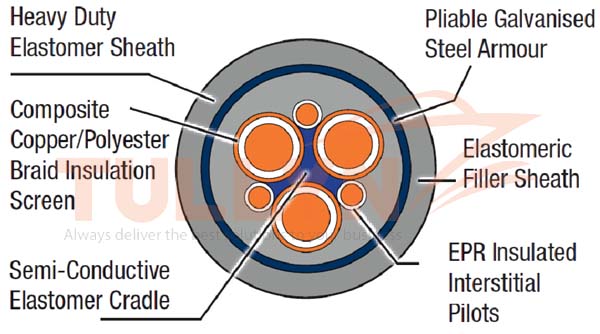

Type 260 Mining Armored Cable 1.1 to 11kv Construction

Type 260 Mining Armored Cable 1.1 to 11kv Construction

Type 260 Mining Armored Cable 1.1 to 11kv Construction

3×Conductors Flexible stranded tinned annealed copper conductor.
Conductor Screen Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).
Insulation EPR.
Insulation Screen Semiconductive elastomer.
Composite Screen
(earth conductor)
Tinned annealed copper braiding interwove with polyester yarn.
Cradle Separator Semiconductive PCP.
3×Interstitial Pilot EPR covered flexible stranded tinned copper conductor.
Inner Sheath PCP sheath. CPE/CSP sheath can be offered upon request.

Type 260 Mining Armored Cable 1.1 to 11kv Technical Data

Voltage Rating   1.1, 3.3, 6.6, 11kV
Operating Conductor Temperature   -25 to 90°C
Emergency Conductor Temperature   130°C
Short Circuit Conductor Temperature   Max. 250°C for 5 sec
Max. Working Tension   0.02kN/mm² (total)

Type 260 Mining Armored Cable 1.1 to 11kv Specification

Type 260.1

Conductor
Size
Screen
Area(each)
Pilot Conductor
Size
Sheath
Thickness
Approx.Cable
Diameter
Approx.
Weight
mm2 mm2 mm2 mm mm kg/100m
6 7.2 1.06 3.8 42.2 246
10 8.6 1.7 3.8 44.1 295
16 9.6 2.76 4 49.8 410
25 11.3 4.45 4.3 53.3 495
35 12.4 6.15 4.6 56.4 576
50 14.4 8.06 5 60.9 679
70 16.5 12.69 5.4 65.8 837
95 18.2 12.69 6 75 1003
120 20.3 13.75 6.4 79.7 1176
150 22.3 16.92 6.9 85.1 1372

Type 260.3

Conductor
Size
Screen
Area(each)
Pilot Conductor
Size
Sheath
Thickness
Approx.Cable
Diameter
Approx.
Weight
mm2 mm2 mm2 mm mm kg/100m
16 13.4 2.76 5.3 62.8 566
25 14.8 4.45 5.6 66.2 661
35 16.1 6.15 5.9 72.6 779
50 17.5 8.06 6.3 76.7 886
70 19.6 12.69 6.6 80.9 1044
95 20.6 12.69 7.1 85.8 1156
120 27.2 13.75 7.4 90.5 1350
150 39.6 16.92 7.8 99.1 1779

Type 260.6

Conductor
Size
Screen
Area(each)
Pilot Conductor
Size
Sheath
Thickness
Approx.Cable
Diameter
Approx.
Weight
mm2 mm2 mm2 mm mm kg/100m
16 16.3 2.76 6.4 76.9 796
25 18.3 4.45 6.7 80.3 897
35 20.3 6.15 7 83.5 990
50 20.3 8.06 7.3 87.4 1102
70 22.6 12.69 7.7 95.9 1456
95 29.6 12.69 8.1 101.3 1610
120 32.3 13.75 8.5 105.6 1807
150 47.3 16.92 8.9 111.3 2080

Type 260.11

Conductor
Size
Screen
Area(each)
Pilot Conductor
Size
Sheath
Thickness
Approx.Cable
Diameter
Approx.
Weight
mm2 mm2 mm2 mm mm kg/100m
25 24.3 4.45 8.1 98.5 1392
35 30.3 6.15 8.4 102.4 1528
50 32.3 8.06 8.7 106.2 1664
70 34.3 12.69 9.1 110.6 1867
95 48.3 12.69 9.6 116.9 2073
