Type 275 Mining Shuttle Reeling Cable 1.1Kv

Standard:AS/NZS 1802:2003
Application: Type 275 cable is a flexible reeling cable suitable for use in arduous conditions such as shuttle bus and pump cables which are subject to the greatest exertion underground

Type 275 Mining Shuttle Reeling Cable 1.1Kv

Type 275 Mining Shuttle Reeling Cable 1.1Kv Application

This Type 275 cable is a flexible reeling cable suitable for use in arduous conditions such as shuttle bus and pump cables which are subject to the greatest exertion underground. Earth cores designed to reduce instances of wire breaks during reeling while under tension. The cable includes one central pilot suitable for earth continuity monitoring.

This cable could also be suitable for use in underground coal mining applications.

Type 275 Mining Shuttle Reeling Cable 1.1Kv Standard

AS/NZS 1125,
AS/NZS 3808,
AS/NZS 1802,
AS/NZS 5000.1

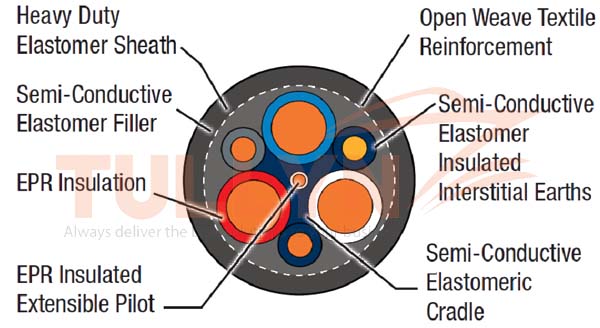

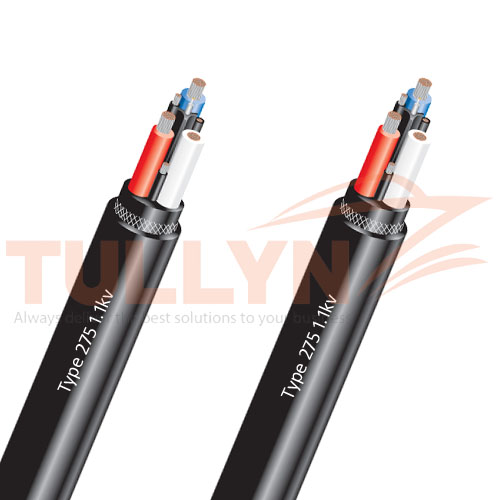

Type 275 Mining Shuttle Reeling Cable 1.1Kv Construction

Type 275 Mining Shuttle Reeling Cable 1.1Kv Construction

Type 275 Mining Shuttle Reeling Cable 1.1Kv Construction

3×Conductors Flexible stranded tinned annealed copper conductor.
Insulation EPR.
Cradle Separator Semiconductive PCP.
Overall Core Screen Semiconductive PCP filling and covering.
3×Interstitial
Earth Conductor
Semiconductive PCP covered flexible stranded tinned copper conductor.
1×Central
Extensible Pilot
EPR covered flexible stranded tinned copper conductor.
Textile Reinforcement Open-weave braid reinforcement.
Sheath Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.

Type 275 Mining Shuttle Reeling Cable 1.1Kv Technical Data

Voltage Rating   1.1kV
Operating Conductor Temperature   -25 to 90°C
Emergency Conductor Temperature   130°C
Short Circuit Conductor Temperature   Max. 250°C for 5 sec
Max. Working Tension   0.02kN/mm² (total)

Type 275 Mining Shuttle Reeling Cable 1.1Kv Specification

Nominal
Conductor
Area
Insulation
Thickness
 Earth Conductor Thickness of Covering Pilot Conductor
Thickness of Covering
Thickness
of Sheath
Nominal
Overall
Diameter
Nominal
Weight
mm^2 mm mm mm mm mm kg/100m
16 1.6 1 0.8 3.8 30.2 145
25 1.6 1 0.8 4 33.9 204
35 1.6 1 0.8 4.3 37.9 270
50 1.7 1 0.8 4.7 41.6 333

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
