Type Y Cylindrical Rubber Fender

Material: Rubber
Type: Type Y Cylindrical
Class Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS, and CCS
Application: used to absorb the berthing energy during mooring or berthing so as to protect the ship and the dock from being damaged.

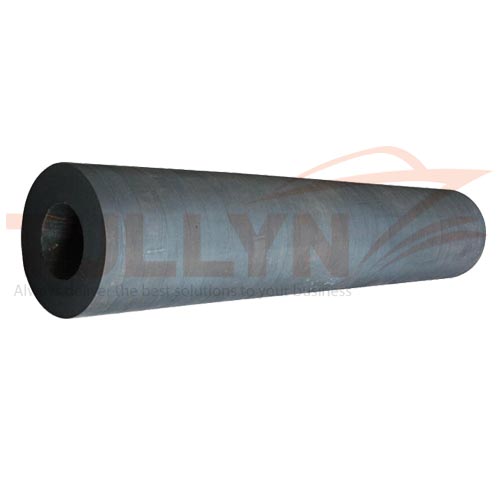

Type Y Cylindrical Rubber Fender

Type Y Cylindrical Rubber Fender Introduction

Cylindrical rubber fender can be easy to install and operate, versatile and highly cost effective. It is widely used in shipping and docks. Cylindrical rubber fenders’ simple hollow cylinder design can be produced in almost any length and diameter combination to meet specific performance and space requirements. The wide range of available sizes means Cylindrical rubber fenders can be closely matched to each application, and suitable for the birthing of both large and small vessels. Its installation is various– horizontally, vertically or diagonally and can also be adapted to suit wharf corners.

The Type Y Cylindrical rubber Fender can be supplied with certification from any of the major classification societies.

Type Y Cylindrical rubber Fender Feature:

1. Low reaction force, low surface pressure and reasonable capability of energy absorbing.

2. Good adaptability of vertical shake of ships during mooring.

3. A wide range of application, no matter the ships with different sizes.

4. Convenient for mounting or maintain and suitable for all of the ports.

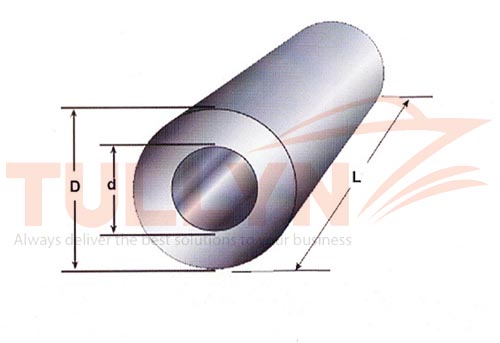

Type Y Cylindrical Rubber Fender Drawing

Type Y Cylindrical Rubber Fender Drawing

Type Y Cylindrical Rubber Fender Drawing

Type Y Cylindrical Rubber Fender Spec

Type L (mm)  D(mm) d(mm) weight(kg/m)
Y150 500-5500 150 75 18
Y200 500-5500 200 100 28
Y250 500-5500 250 125 45
Y300 500-5500 300 150 64
Y400 500-5500 400 200 110
Y500 500-5500 500 250 175
Y600 500-5500 600 300 250
Y700 500-5500 700 350 345
Y800 500-5500 800 400 450
Y900 500-5500 900 450 570
Y1000 500-5500 1000 500 710
Y1100 500-5500 1100 550 870
Y1200 500-5500 1200 600 1020
Y1400 500-5500 1400 700 1400
Y1600 500-5500 1600 800 1800

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
