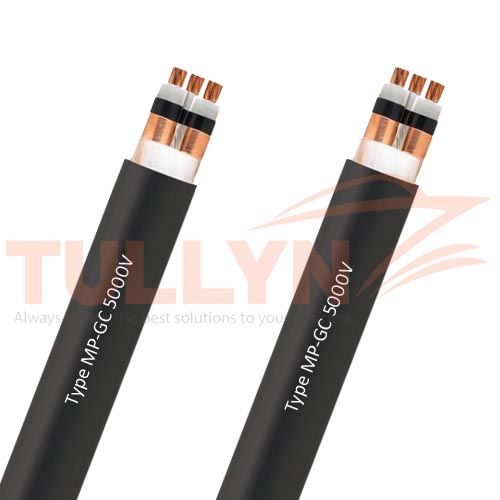

Type MP-GC Mine Power Feeder Cable 5Kv

Standard:ICEA S-75-381
Material: Cu/EPR/Semi-conducting layer + copper tape/CPE
Application: Type MP-GC cables are designed for use with stationary horizontal HV mine power distribution circuits.

Type MP-GC Mine Power Feeder Cable 5Kv

Type MP-GC Mine Power Feeder Cable 5Kv Application

This Type MP-GC power feeder cable is designed for use in high voltage distribution circuits for permanent (or semi-portable) installations in bore holes, shafts, open pits, strip mines, and tunnels. It is used for connections between units of mine distribution systems, suitable for installing in the duct, conduit or open air. The cable can be used in wet or dry locations, installed in conduit or duct, (not to exceed maximum rated voltage), and suitable for direct burial applications.

Rated Voltage of 5Kv, 8kv, 15Kv, 25Kv is available upon request.

Type MP-GC Mine Power Feeder Cable 5KvStandard

ICEA S-75-381/NEMA WC 58

ASTM B 172


CAN/CSA-C22.2 No.96

Type MP-GC Mine Power Feeder Cable 5Kv Construction

Conductors  Stranded annealed bare copper conductor.
Conductor Shield Semi-conducting layer.
Insulation EPR.
Insulation Shield Semi-conducting layer + copper tape.
Ground Check Conductor Copper conductor with a yellow polypropylene insulation.
Grounding Conductor Tinned copper conductor.
Sheath  Chlorinated Polyethylene(CPE), black.
Other sheath materials can be offered as an option.
Options: Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be
offered as an option.

Type MP-GC Mine Power Feeder Cable 5Kv Specification

Construction Grounding
Conductor Size
Ground Check
Conductor Size
No. of cores×
AWG/kcmil AWG/kcmil mm mm mm kg/km A
3×6 10 8 2.3 2.8 33 1577 93
3×4 8 8 2.3 2.8 35.8 2144 122
3×2 6 8 2.3 2.8 37.3 2718 159
3×1 5 8 2.3 2.8 39.1 3226 184
3×1/0 4 8 2.3 2.8 41.4 3871 211
3×2/0 3 8 2.3 2.8 43.7 4478 243
3×3/0 2 8 2.3 3.6 48 4859 279
3×4/0 1 8 2.3 3.6 51 6234 321
3×250 1/0 8 2.3 3.6 53.3 7179 355
3×350 2/0 8 2.3 3.6 58.7 9019 435
3×500 4/0 8 2.3 3.6 65.8 12538 536

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
