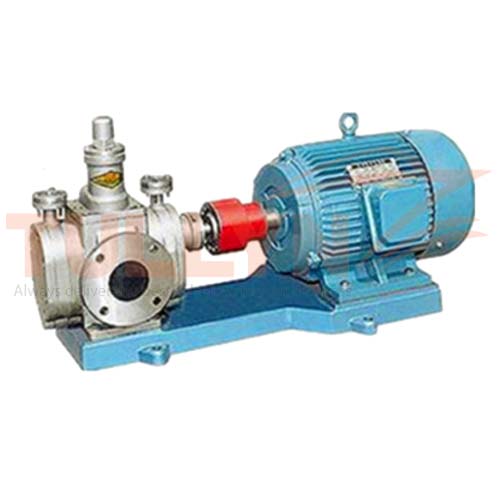

YCB-G Series Heat Insulating Heavy Oil Gear Pump

Type: Gear Pump
Material: Cast Iron /Stainless steel
Application: for lubricating oil or other similar oil

YCB-G Series Heat Insulating Heavy Oil Gear Pump

YCB-G Series Heat Insulating Heavy Oil Gear Pump Application

This YCB-G Series Heat Insulating Heavy Oil Gear Pump is used to transfer different medium, such as heavy oil, asphalt, resin, detergent and glue, which not includes solid particles and the temperature not higher than 300*C, with solidifying character under the normal temperature. It also applies to the site with heat Insulated requirement in the process technology and outdoors installation at a very cold area.

This series of heat insulating heavy oil gear pump belongs to the external gear pump.The tooth form is compositely formed by arc and sine Curve. It could transfer many kinds of medium with steady output flow and pressure. There are heat insulating jacket and inlet and outlet joints, on the pump casing, so it could adopt the media, such as heat-conducting oil, steam, hot water and cold water to heat keep warm and cooling the transferred medium and pump. When the viscosity of transferred medium is larger than 1500cst, speed should be reduced.

YCB-G Series Heat Insulating Heavy Oil Gear Pump Specification

Model Port. Capacity Differential Pressure Speed Motor Power
mm m*/h Mpa r/ min (KW)
YCB-G0.6-0.6 25 0.6 0.6 960 0.75
YCB-G1.6-0.6 32 1.6 0.6 960 0.75
YCB-G3.3-0.6 40 3.3 0.6 960 1.5
YCB-G4-0.6 50 4 0.6 960 1.5
YCB-G8-0.6 65 8 0.6 960 3
YCB-G10-0.6 65 10 0.6 970 4
YCB-G15-0.6 65 15 0.6 960 5.5
YCB-G20-0.6 80 20 0.6 970 7.5
YCB-G25-0.6 80 25 0.6 970 11
YCB-G30-0.6 100 30 0.6 970 11
YCB-G40-0.6 125 40 0.6 970 15
YCB-G50-0.6 125 50 0.6 970 22
YCB-G60-0.6 150 60 0.6 970 30
YCB-G80-0.6 200 80 0.6 970 37

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
