T14 IBC tank container

Capacity: 2500L
Working Pressure: 4Bar;
Certificate; CCS/LR/BV
Design Code: ASME VIII Div 1
Design Approvals: IMDG T14, ADR/RID, CFR49, TIR, CSC

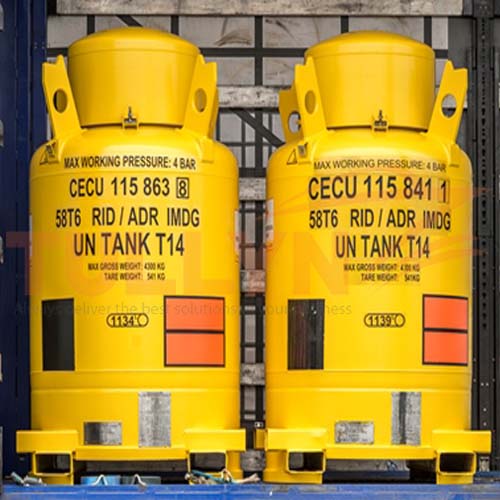

T14 IBC tank container

T14 IBC tank container Introduction

The 10ft T14 IBC Tank Container is designed to comply with the requirements of IMDG Code, aiming at transportation of liquid and powder on the road, rail, ship, trailer, etc. This IBC tank is also known as Intermediate bulk container, which is a pallet mounted, industrial grade reusable container. It is used for storing and transporting bulk liquids and powders. Also known as a tote, the IBC tank container is capable of stacking and can be moved by a pallet jack or forklift.

Intermediate bulk containers have all also been used in unique areas such as aquaponics, general bulk storage, and the collecting of rainwater for drinking or harvesting.

Standard: IMDG T14, ADR/RID, CFR49, TIR, CSC

Max Cargo Temperature: +50 degree Celsius

Certificate: CSC certificate like GL/LR/BV/ABS

All tanks are of the highest quality design and construction and conform strictly to the latest international approvals.

T14 IBC tank container Specification

Tank Type Type T14 vertical portable tank
Diameter 1600mm
Capacity 2,500 Litres±2%
M.G.W. 5,500 kg
Tare (est.) 960 kg±5%
Max Payload 4,540 kg
Design Pressure 4 Bar
Test Pressure 6 Bar
Working Temp -40°C to +50°C
Vessel Material ASTM SA240 316L, Hot Rolled or Cold Rolled
Max. Allowable Vacuum 0.41 Bar
Overall Height 2075±10 mm
Design Temp 50℃ @ 4 Bar
Nominal Thickness 5mm 6 mm before forming
Frame to Shell 304 stainless steel
Stacking N/A
Vessel Design Code ASME VIII Div 1 where applicable
Radiography Shell
Ends
ASME Spot
ASME Full
Inspection Agency LR
Cargo carried See dangerous cargo lists for UN Portable T14 tank
Design Approvals IMDG T14, ADR/RID, CFR49, TIR, CSC

Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
