Trommeflex PUR-HF Reeling Cable 0.6/1kv

Material: Cu/Polyester/PUR/Textile Braid/PUR
Application: The trommeflex pur-hf cables are used for high mechanical stress and torsional stress, especially for applications with frequent winding and unwinding, for example for building machines, conveyor belts, and cranes, hoisting devices, conveyor facilities, mobile motors, rail motors and agricultural devices.

TROMMEFLEX PUR-HF Reeling Cable 0.6/1kv

TROMMEFLEX PUR-HF Reeling Cable 0.6/1kv Application

Trommelflex PUR-HF is specially designed for use on both spring operated and motor-driven cable reeling drums. The use of hard wearing polyurethane for both inner and outer sheath allows for a significantly smaller outside diameter than traditional drum reeling cables which in turn enables selection of smaller, more cost-effective cable reeling drums in many applications. This cable is also suitable for many other applications where high mechanical stresses are involved.

These reeling cables have reduced outer diameters, weight and minimum bending radius compared to NSHTÖU cables. It makes possible to applicate with smaller drive motors and reels, saving the cost. The cables are used for high mechanical stress and torsional stress, especially for applications with frequent winding and unwinding, for example for building machines, conveyor belts, and cranes, hoisting devices, conveyor facilities, mobile motors, rail motors and agricultural devices. Cables are used as stable and weather resistant cables for the most difficult operations in mine and manipulation devices.

Thanks to PUR outer sheath these cables are resistant to ozone, radiation, low temperature, abrasion, climatic influences, oils, lipids, and petrol. The cables are suitable for installation in dry, damp and wet environments as well as outdoors.

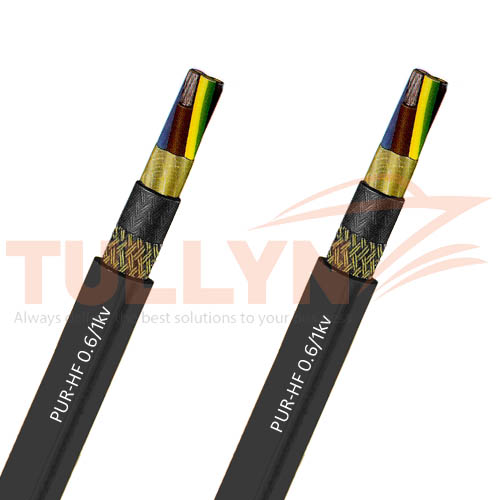

TROMMEFLEX PUR-HF Reeling Cable 0.6/1kv Construction

Conductor: Fine stranded copper acc to VDE 0295 class 5
Insulation: Polyester based halogen-free compound
Core color: Up to 5 cores acc. to VDE 0293, 7 cores and above
white with black numbers with green/yellow earth
Core arrangement: Cores twisted around central textile filler with short lengths of lay
Inner sheath: Halogen free polyurethane
Support braid: Textile braid between inner and outer sheaths
Outer sheath: Flame resistant and halogen-free polyurethane
Sheath color: Black
Imprint: Trommelflex PUR-HF 600/1000V

TROMMEFLEX PUR-HF Reeling Cable 0.6/1kv Technical Data

Max operating temperature in a fixed application: -50 deg C to +90 deg C
Max operating temperature in a mobile application: -40 deg C to +90 deg C
Max temperature at conductor: +90 deg C
Environment: Suitable for use in dry and damp areas, and outdoors
Nominal voltage: 600/1000V
Test voltage: 4000V
Conductor resistance: In acc. with IEC 228 class 5
Min. bending radius: 6 x outside diameter
Tensile strength: up to 25N/mm2 of copper section
Operating speed: 180 m/min max.
Oil resistance: Yes
Flame resistance: Yes

TROMMEFLEX PUR-HF Reeling Cable 0.6/1kv Specification

Number of cores x
core cross section
Approx. outer
Diameter
Cooper
weight
Approx. cable weight Breaking load
of the suspension
mm2 (mm) (kg/km) (kg/km) N
4×1.5 11.2 58 155 1340
5×1.5 11.8 80 178 1690
7×1.5 13.5 115 218 2150
12×1.5 17 196 363 2600
18×1.5 18.1 303 459 2600
24×1.5 20.9 392 590 2800
30×1.5 23 432 720 2900
42×1.5 28.5 633 980 2900
4×2.5 12.3 96 208 1345
5×2.5 13 124 230 2100
7×2.5 14.7 180 315 2550
12×2.5 19.4 308 485 2900
18×2.5 20.5 450 679 3200
24×2.5 23.6 616 860 3450
30×2.5 26.8 771 1080 4200
4×4 13.6 160 281 1690
4 x6 14.9 240 372 1860
4×10 18.9 404 615 2300
4×16 22.1 642 924 2800
4×25 25.5 1005 1270 3300
4×35 30 1410 1778 3300
4×50 35.6 2010 2650 3800
4×70 43.6 2688 3380 4500
4×95 49.2 3648 4695
5×4 14.5 200 318 2500
5×6 17.4 317 435 3000
5×10 20.5 528 704 3000
5×16 24.2 816 1067 3000
4×16 + 2x(4×1.5) C 25.3 840 1200 2110
19×2.5 + 5×1.5(c) 23.8 563 850 2900
25×1.5 + 5×1.5(c) 23.4 635 704 2900
8x6x2.5 43.5 1152 2485 4000

DISCLAIMER: Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
